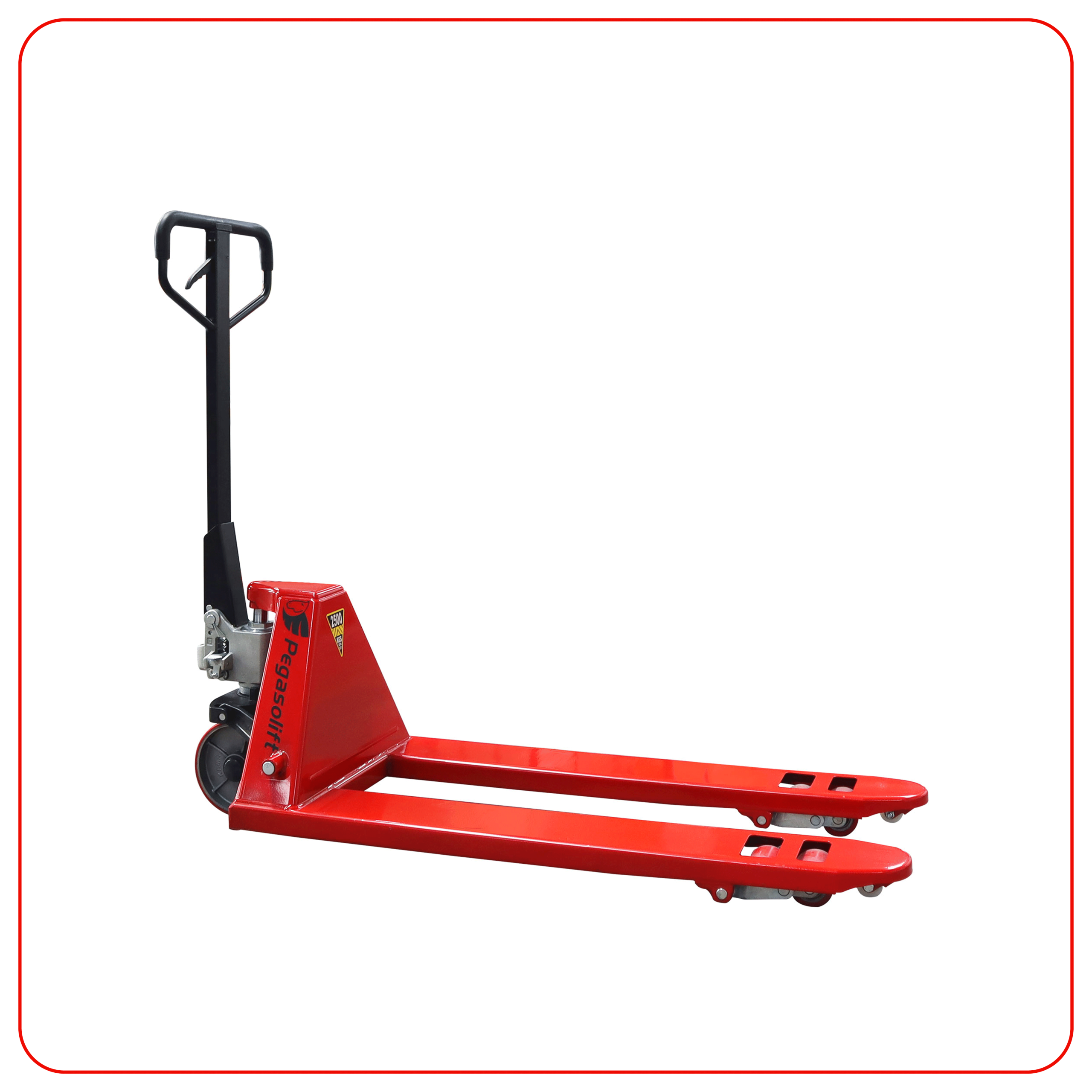

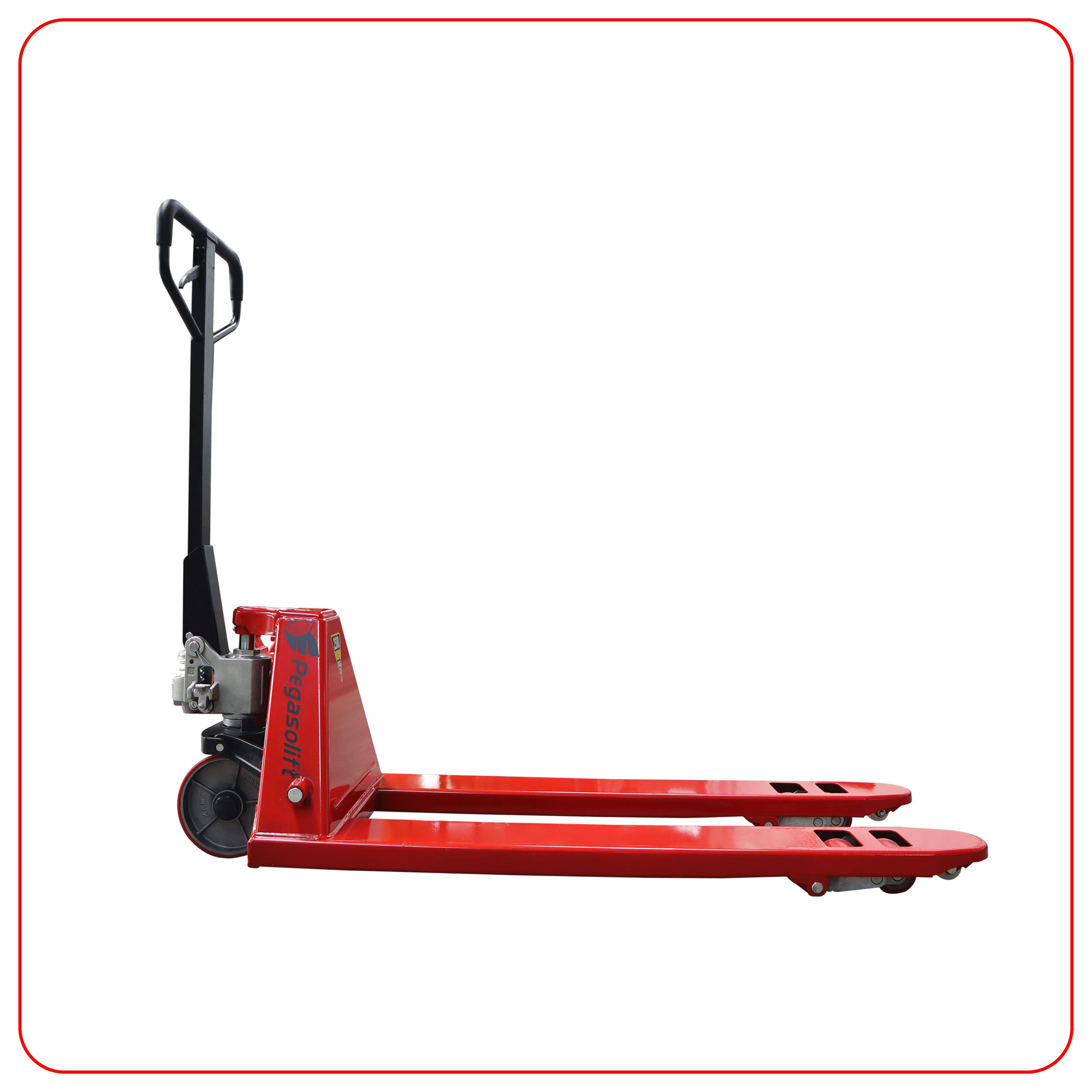

Manual Pallet Truck 1150mm (3 Tonne) – 534-PGM30-002

  • Home
  • Home page
  • Manual Pallet Truck 1150mm (3 Tonne) – 534-PGM30-002
24 002 1_546bc445 8ed0 4373 a870 fc4fa70f7d8c
24 002 2_86384164 36cd 447a a3b4 fc444971d043
£470.00
Rated 0 out of 5
(0 customer review)

ūüď¶ Including Delivery

 MODEL NO  534-PGM30-002   1150mm Red 3 T
DISTINGUISH MARKS Drive / Operation type Manual
Rated capacity/Rated load 3000 kg.
Load centre distance                            G 600 mm.
Wheel base 1140 mm.
WEIGHT

Net weight (inc. Polyurethane wheel)

82 kg.

WHEELS Tyres Polyurethane
Tyres size at front 80×70
Tyres size at rear 200×50
Track width, front 450 mm.
Track width, rear 180 mm.
BASIC DIMENSIONS Lowered height 85 mm.
Lift 195 mm.
Overall length                                       B 1530 mm.
Total width 535 mm.
Fork dimensions               50X160mm. A=1150 mm.
Turning radius                                       R 1400 mm.
