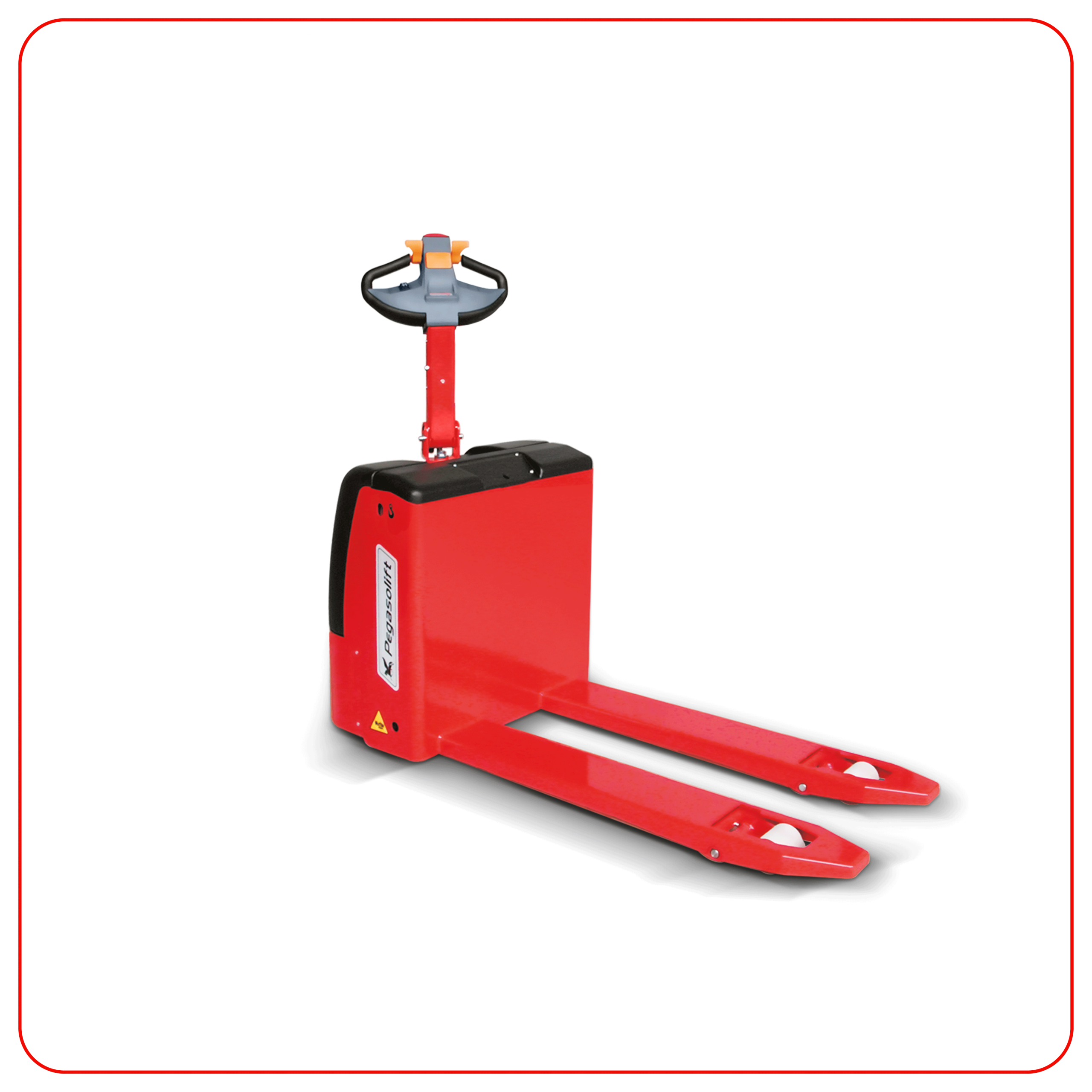

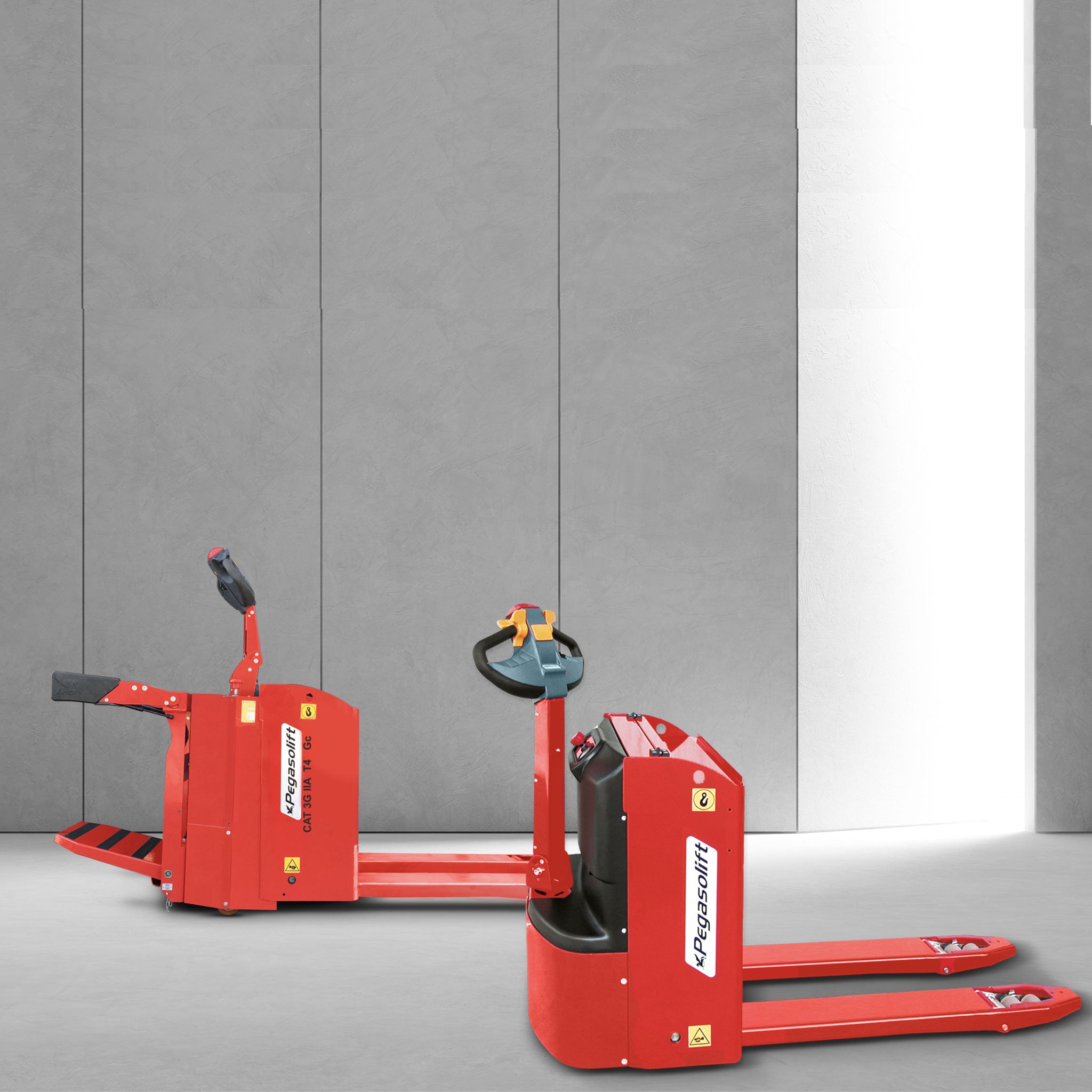

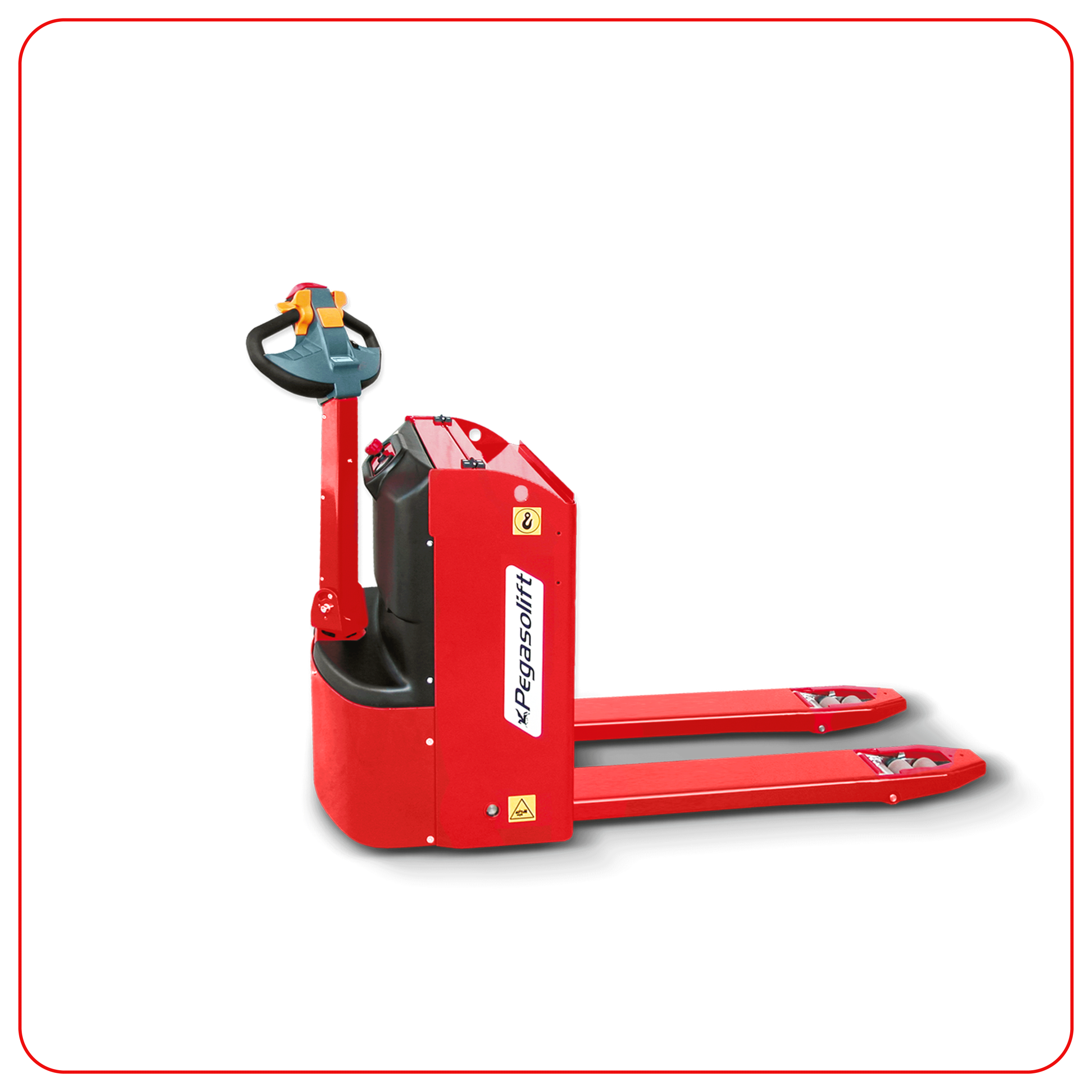

The TPL20 series of electric pallet trucks are available in standard version and with ATEX version for explosive environments as an option.


Guide with central rudder

The TPL20 electric pallet truck has a guide with a central rudder. The control head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder.

Quick battery change

The TPL20 series electric pallet trucks are equipped with a quick reach of battery that can be changed easily.

  • Including Battery (Lead/Acid Battery 24V 270Ah/5h)
  • Including Battery Charger Unit (24V 50A)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of 2000 kg
  • Suitable for use in Cold Store -30°C (Optional)

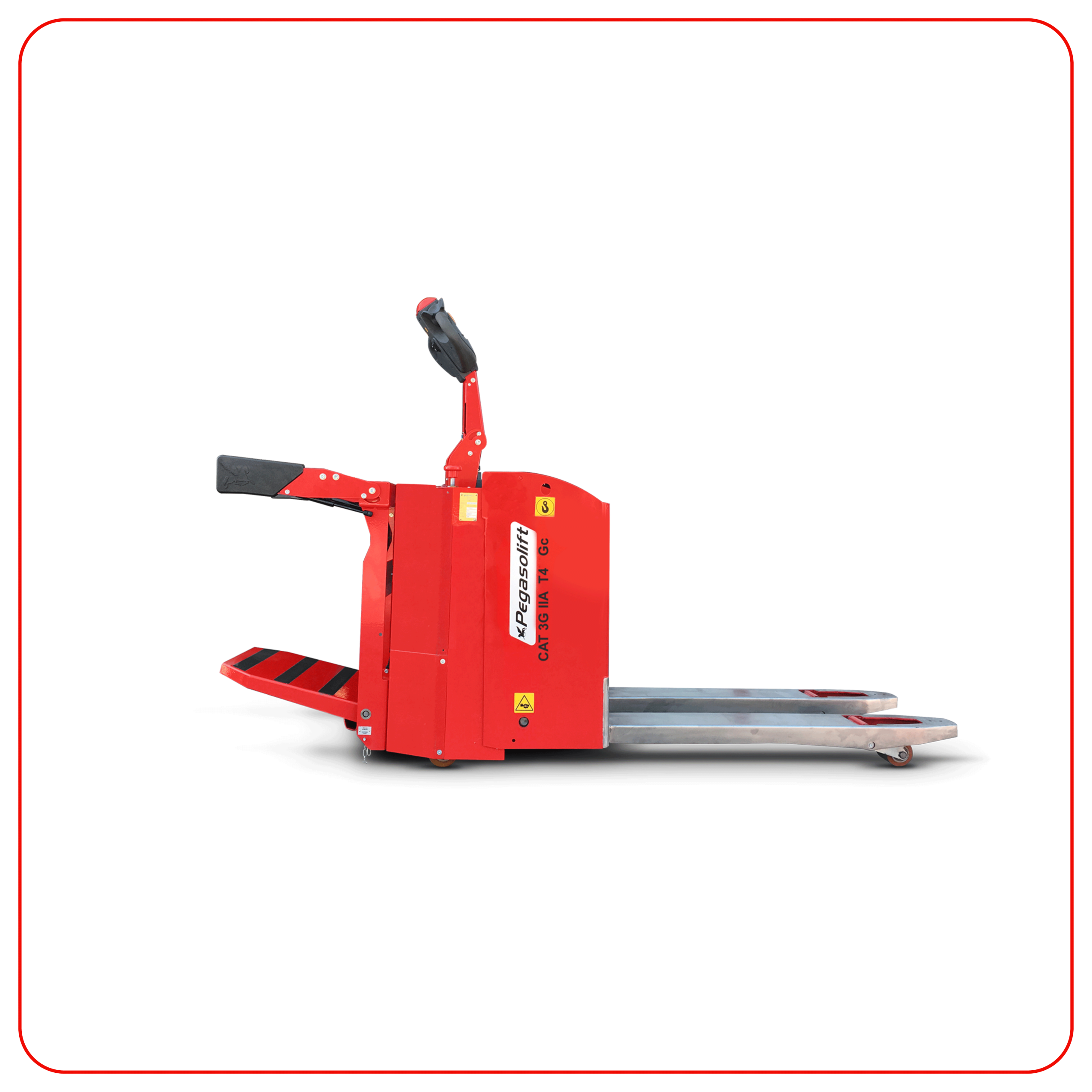

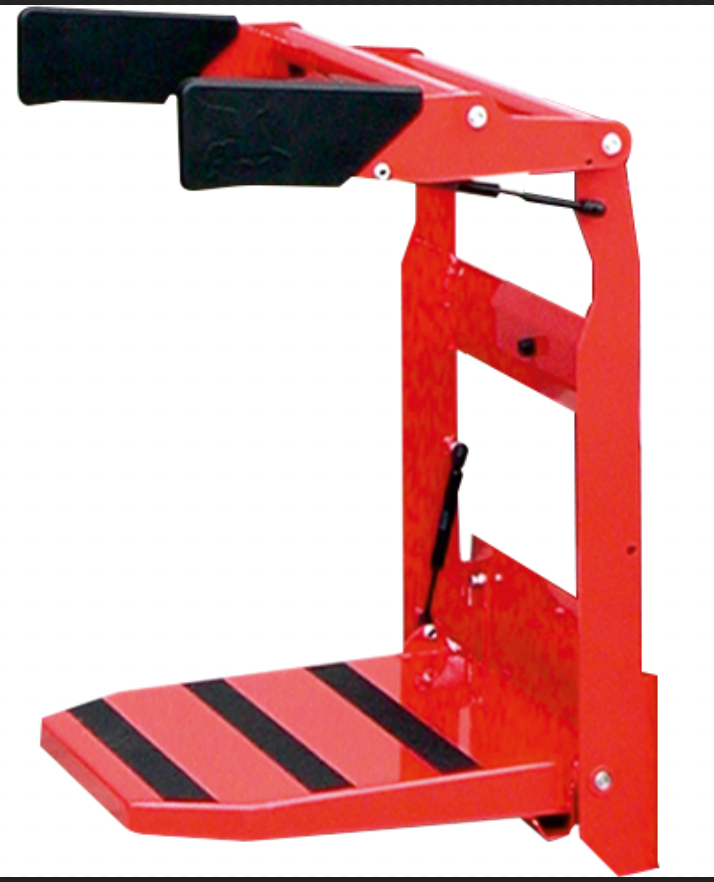

  • Operator`s Platform (Optional)
  • Battery charge indicator and fork lock.
  • Fork Dimensions 165x50x1150 mm
  • LCD hour counter.
  • Polyurethane wheels.
  • Single front rollers included.
  • Double front rollers (Optional)
  • AC Electronic System 24V 250A.
  • Excitation translation motor in series 24V 1200W complete with electromagnetic brake.
  • 24V 800W Hydraulic power unit with up/down solenoid valve.
  • Ex ATEX (optional)
  • Quick battery change.
  • Ask for additional tools such as Coil transporter etc…
  • Ask for custom fork dimensions…
Front Rollers

Single Front Rollers, Double Front Rollers
