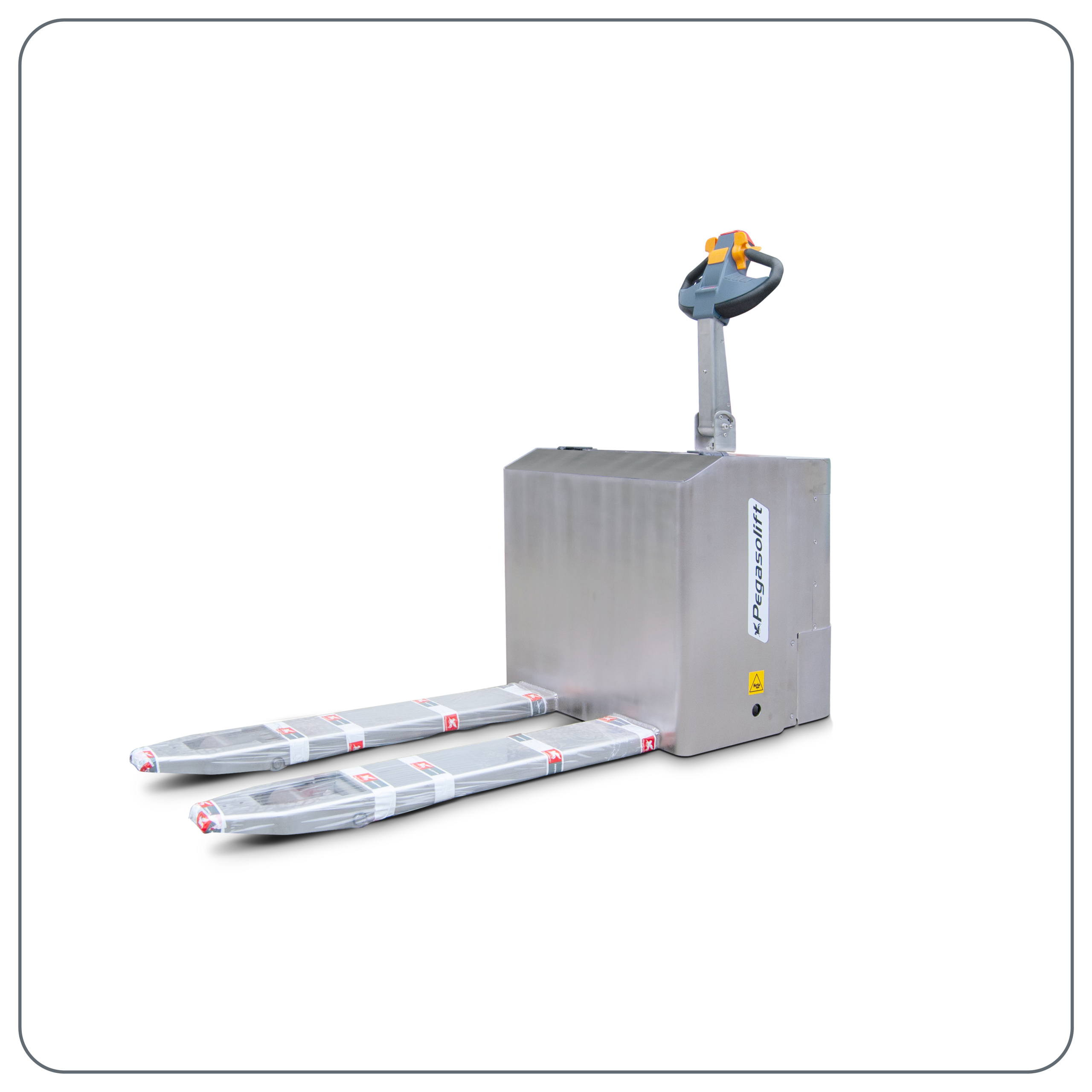

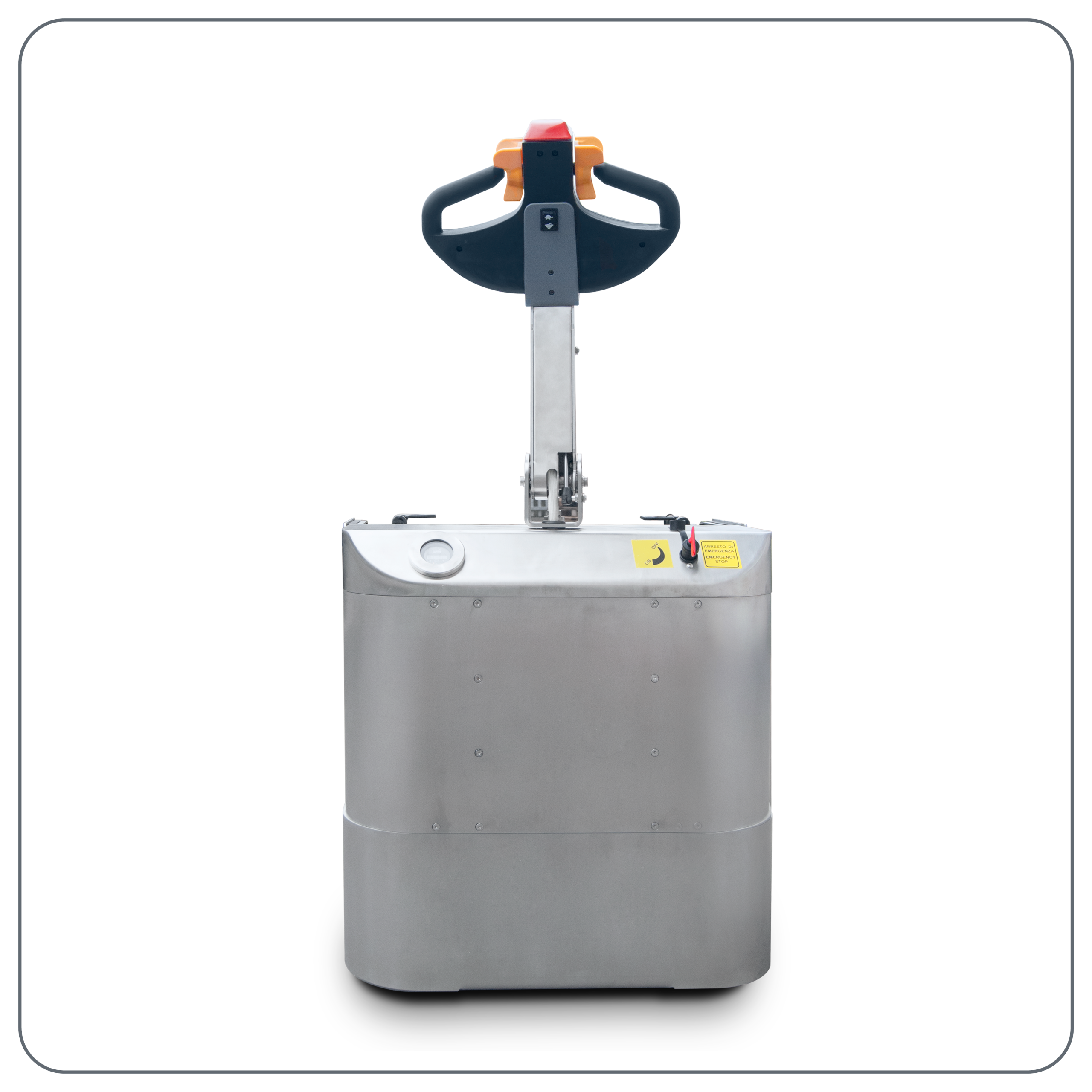

Electric Pallet Truck TPL20 INOX

tpl20inox 1
tpl20inox 2
PL20inox_cb270c63 e402 4251 ad81 3cfff9addab6
pl20inox 1_aefc0d6d 74f3 47e1 a4ff 9eef0704ba52
OpertaorsPlatforminox_d226a6a9 59c9 4fe3 91fe b38399b4564d
£29,307.55£31,235.30
Rated 0 out of 5
(0 customer review)

📦 Including Delivery (Leading time 3 months from order date)

SKU:7119682011268-electric-pallet-truck-tpl20-inoxCategory:

TPL20 INOX is a compact pallet truck made of AISI 304 stainless steel, ideal for handling pharmaceutical, chemical and foods. Ideal for daily usage even in narrow spaces such as lorries, aisles..

The compact pallet truck for the handling of food, chemical and medical goods.
The TPL20 INOX stainless steel pallet truck is designed to be compact, manageable and easy to use.
Made of AISI 304 STAINLESS Steel, it is suitable for the internal handling of food and pharmaceutical products.
It has a IP56 protection level to facilitate washing even with jets washers. Equipped with rubber supply wheel guarantees the best traction and adhesion even on wet floors such as fishmongers, sea ports etc…

    • Including Battery (Gel Battery 24V 255Ah/5h)
    • Including Battery Charger Unit (24V 50A)
    • Guide with central rudder, Manual control
    • Cold store -30°C (Optional)

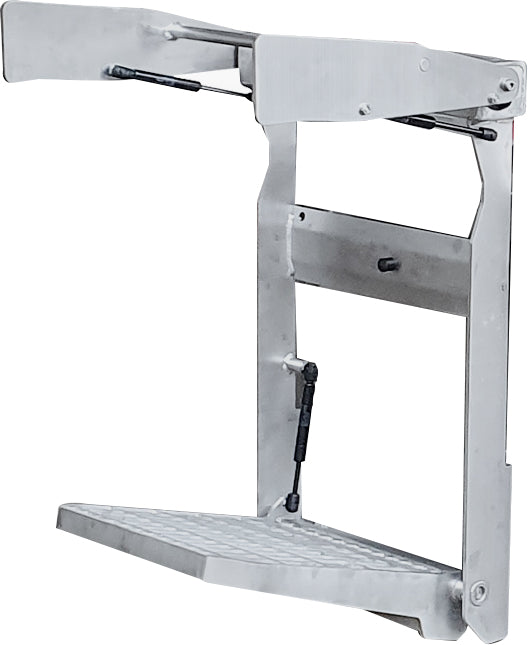

    • Operator`s Platform (Optional)
    • Single Front Rollers with bearing in INOX AISI304 Steel.
    • Double Front Rollers (Optional)
    • Battery charge indicator.
    • Fork Dimensions 165x50x1150 mm
    • Load capacity of 2000 kg
    • Class H1 hydraulic oil suitable for use in alimentary industry.
    • AC electronic controller up to 24V 250A
    • Hydraulic unit up to 24V 2200W with electric descending valve.
    • AC drive motor with series excite system up to 24V 1200W with Electromagnetic brake.
    • IP54 traction unit anti-corrosion aluminium with motor electromagnetic brake protections (INOX AISI304 Steel)
    • IP54 Tiller head.
    • Speed selector for manoeuvres with vertical rudder.
    • Ex ATEX (Optional)
Front Rollers

Single Front Rollers, Double Front Rollers

Operator`s Platform

Without Operator`s Platform, Operator`s Platform
