Electric Pallet Truck TPL16

tpl 16 20 30 1
tpl 16 20 30 2
tpl 20
tpl 16_20_30
OperatorsPlatform_04be2704 cfeb 4f2a b809 969ad720abdc
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery

This product is currently out of stock and unavailable.

SKU:7119047360644-tpl-16-electric-pallet-truckCategory:

The TPL16 series of electric pallet trucks are available in standard version and also with ATEX version for explosive environments as an option.


Guide with central rudder

The TPL16 electric pallet truck has a guide with a central rudder. The control head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder.

Quick battery change

The TPL16 series electric pallet trucks are equipped with a quick reach of battery that can be changed easily.

  • Including Battery (Lead/Acid Battery 24V 270Ah/5h)
  • Battery Charger Optional (50A Battery Charger suggested)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of 1600 kg
  • Suitable for use in┬áCold Store -30┬░C (Optional)

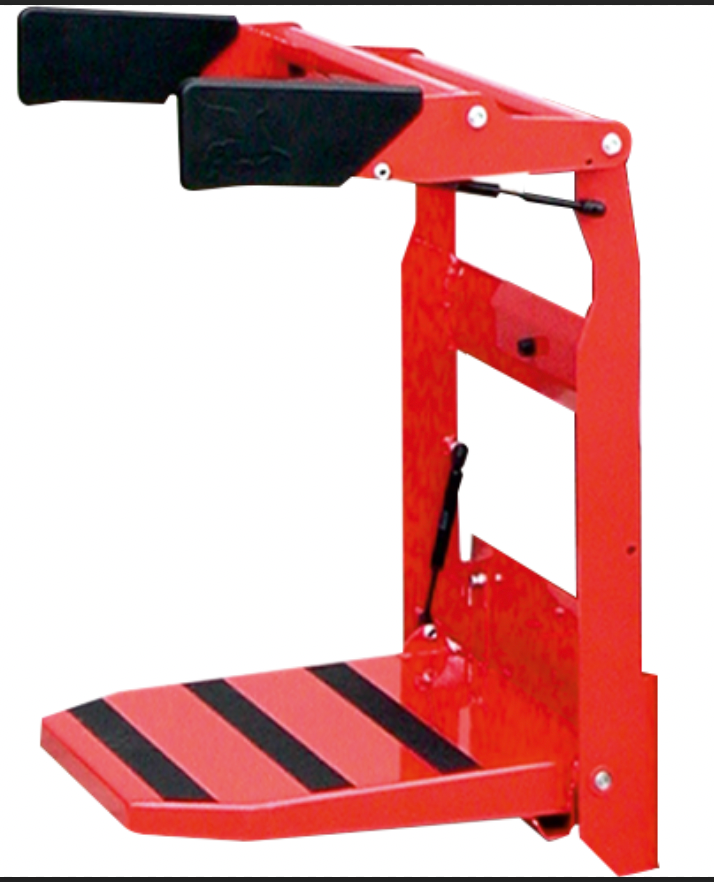

  • Operator`s Platform (Optional)
  • Battery charge indicator and fork lock.
  • Fork Dimensions 165x50x1150 mm
  • LCD hour counter.
  • Polyurethane wheels.
  • Single┬áfront rollers. (Double front rollers Optional)
  • AC Electronic System 24V 250A.
  • Excitation translation motor in series 24V 1200W complete with electromagnetic brake.
  • 24V 800W Hydraulic power unit with up/down solenoid valve.
  • Ex ATEX (optional)
  • Quick battery change.
  • Ask for additional tools such as Coil transporter etc…
  • For Li-Ion battery option please ask for a quotation
  • Ask for custom fork dimensions…
