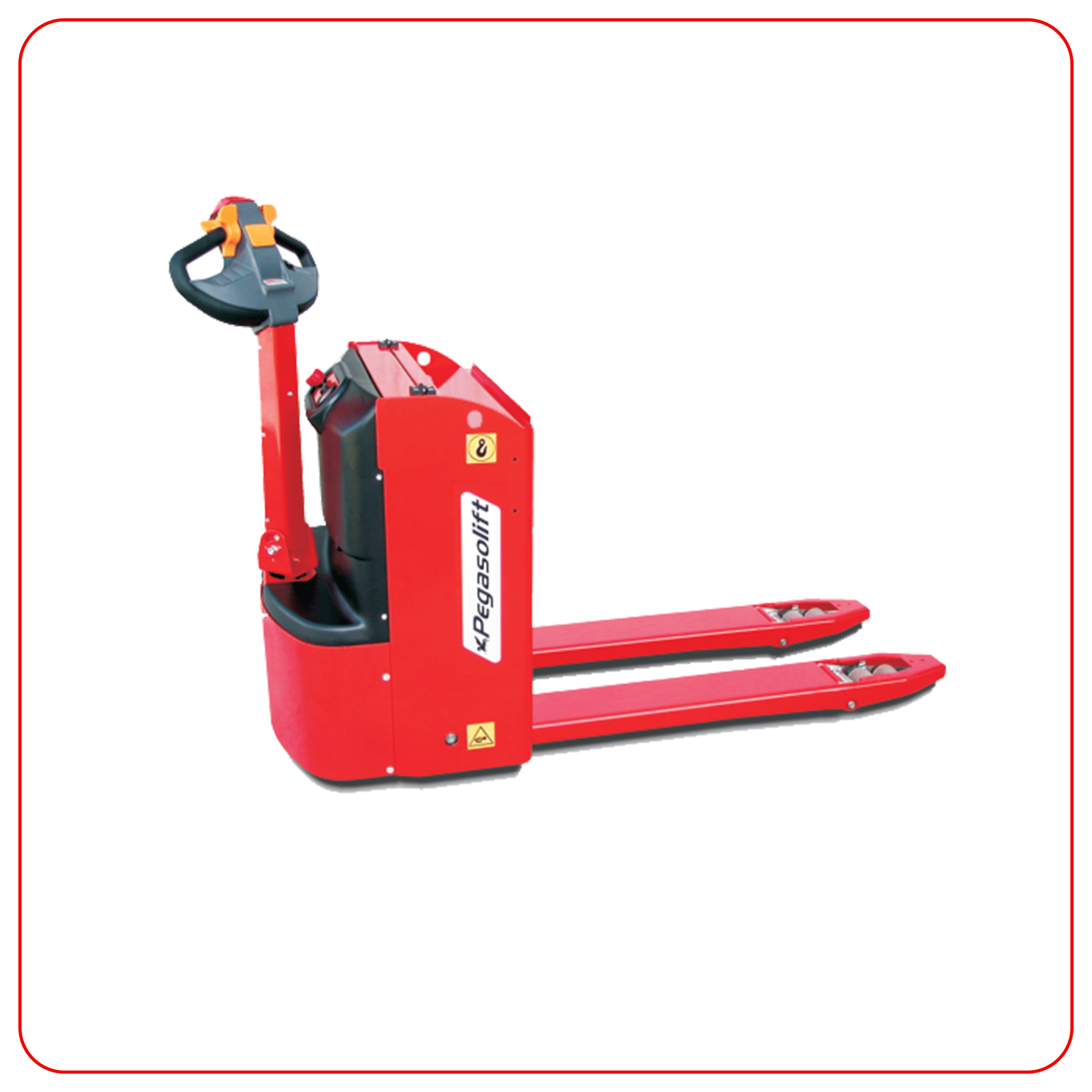

Electric Pallet Truck COMPACT20

compact20 2
t14 2_bbc68738 17dd 4f91 b71f dc65a11f8615
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery


COMPACT20 is the pallet truck with maximum manoeuvrability. Designed to work in small areas and limited environments.

Guide with central rudder
The COMPACT20 pallet truck has the guide with central rudder and manual control.

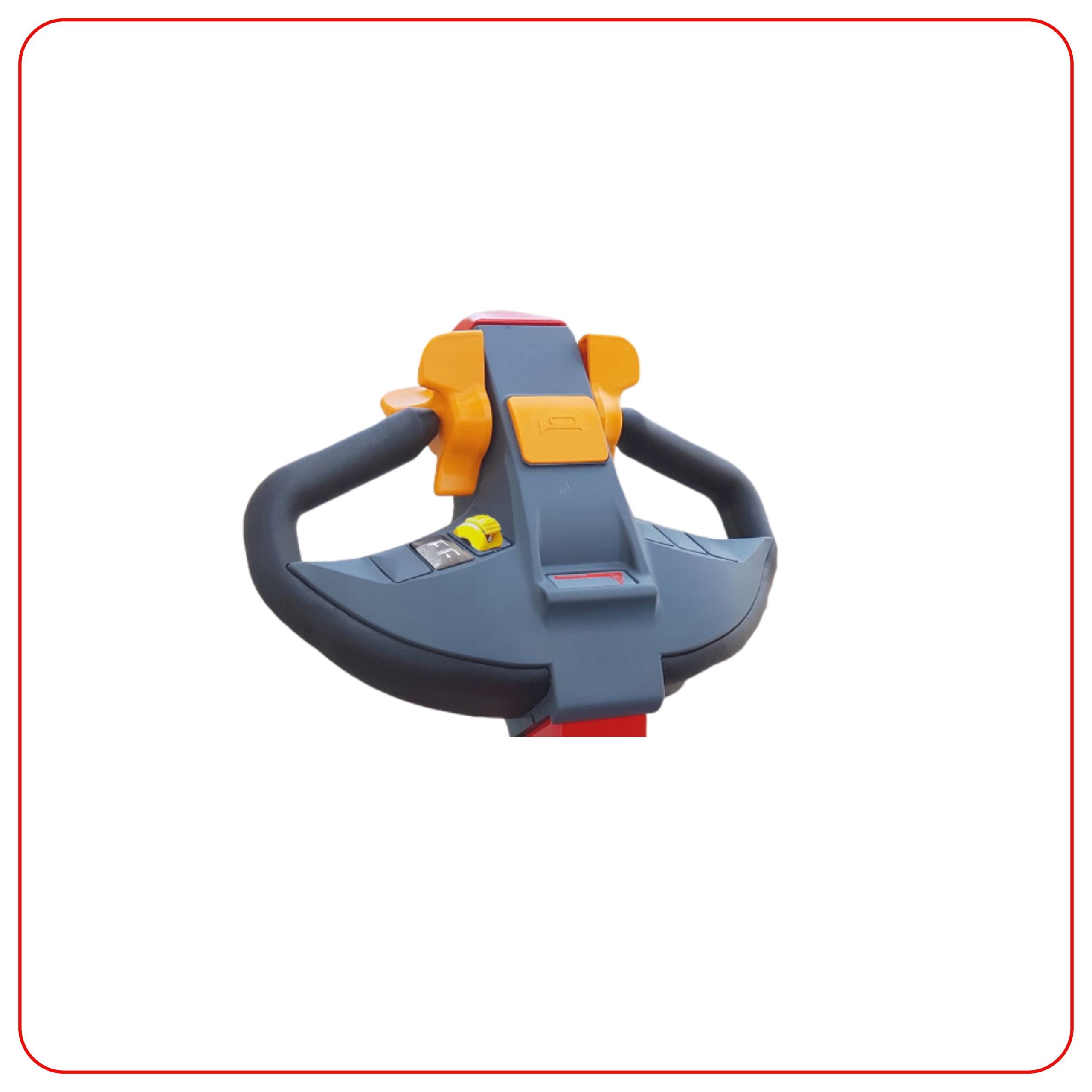

The tiller head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder and proportional speed of descent control forks.

Designed to work in small areas and limited environments
COMPACT 20 is a pallet truck designed to work in a limited environment, allowing excellent manoeuvrability even at full load, thanks to the powerful engine and compact dimensions.

  • 24V 150Ah/5h Battery included.
  • 24V 20A high frequency built-in Battery Charger included.
  • Guide with central rudder, Manual control.

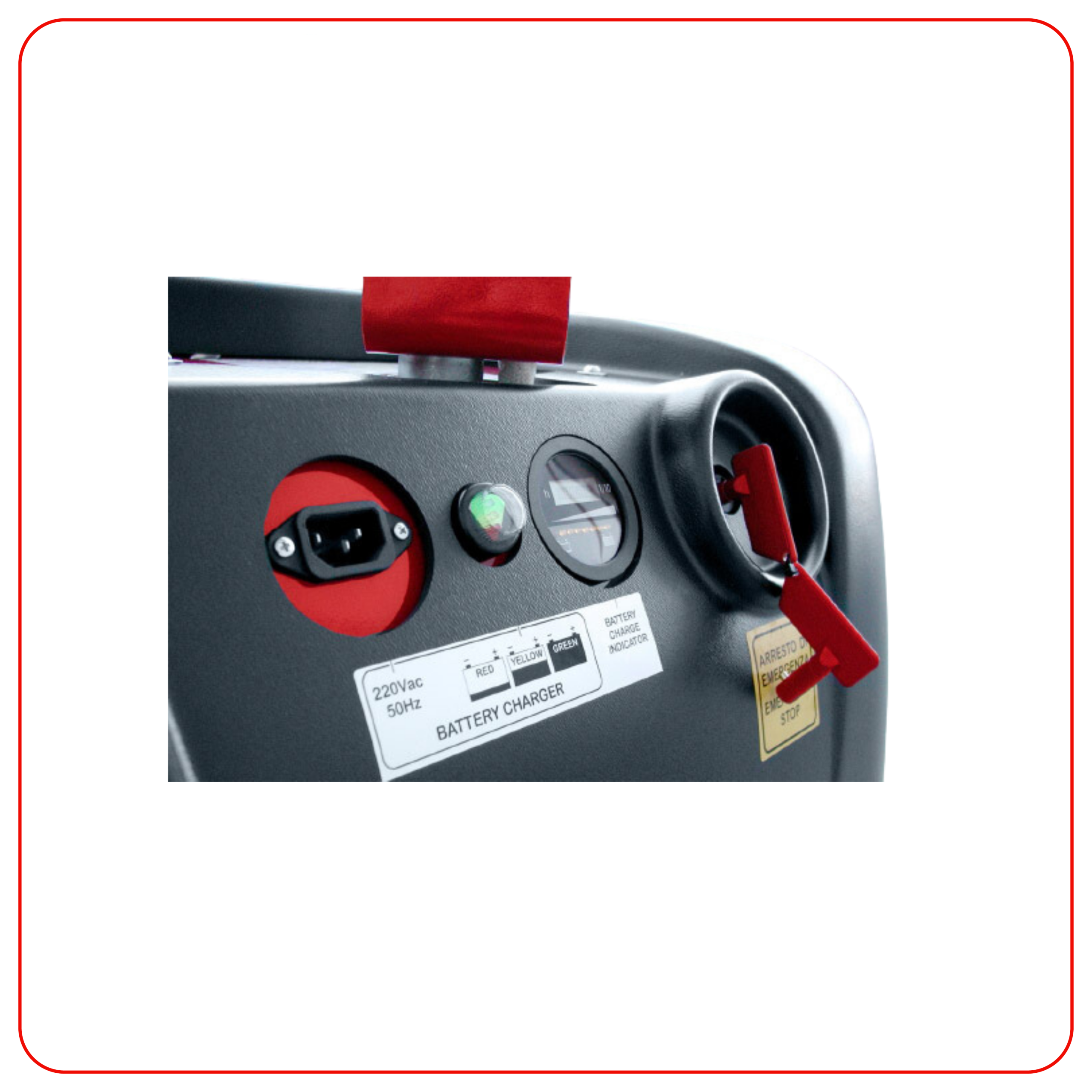

  • Battery charge indicator and battery lock.
  • Fork Dimensions 165x50x1150 mm
  • LCD hour counter.
  • Polyurethan wheels, Single front roller. (Double front roller Optional)
  • Loading capacity of 2000 kg.
  • Cold Store -30┬░C. (Optional)
  • Selector for manoeuvres with vertical rudder.
  • Electronic System controller MOSFET 24V 200A.
  • 24V 800W Hydraulic power unit with ascent/descent solenoid valve.
  • Translation motor with separate excitation 24V 1200W complete with electromagnetic brake.
  • 24V 150Ah/5h traction battery and 24V 20A high frequency rectifier built-in.
  • Length: 1150 mm
  • Fork gauge: 560 mm
  • Height from ground of forks: 80 mm
  • Forks Lifting Stroke: 120 mm

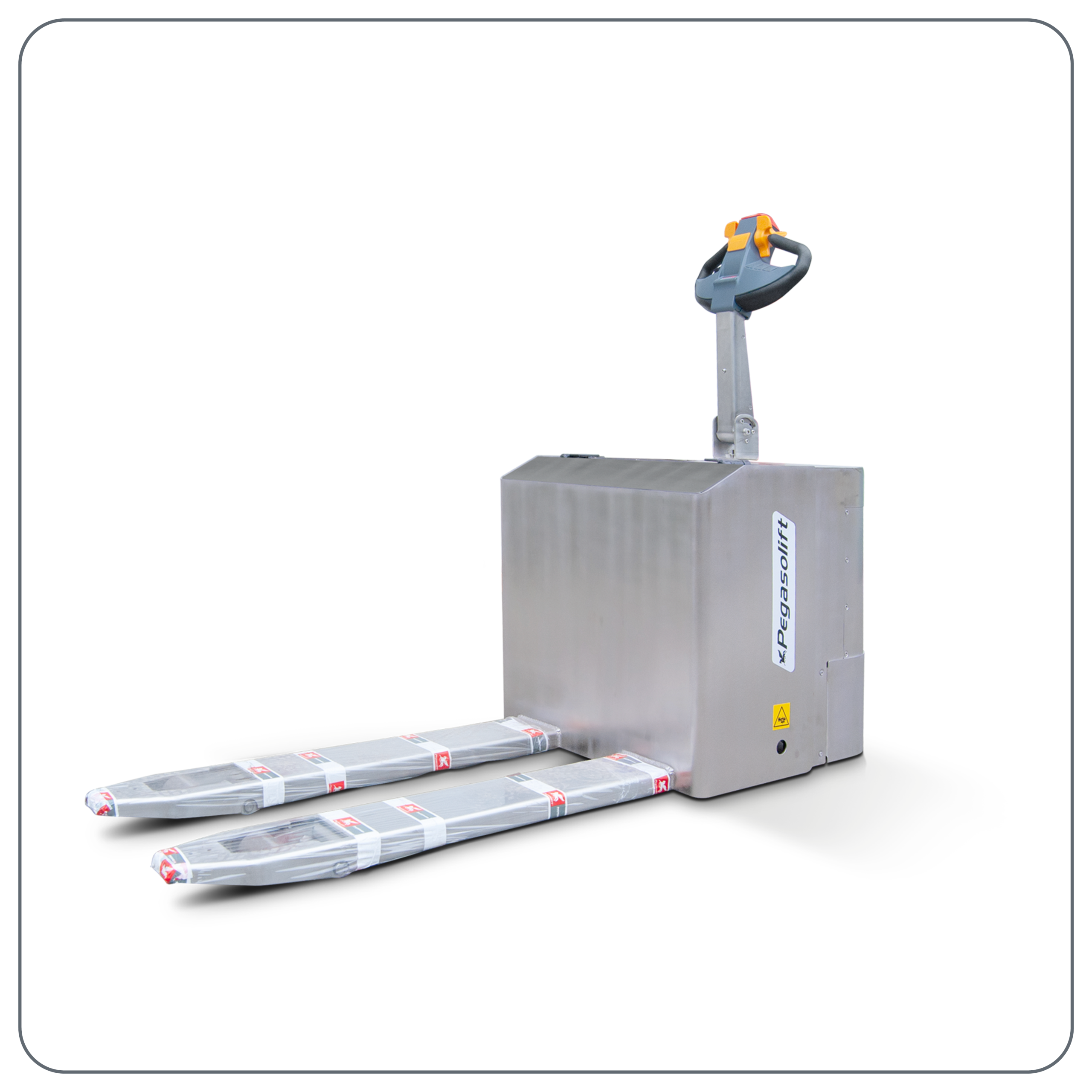

  • INOX option available
  • Ask for custom fork dimensions
