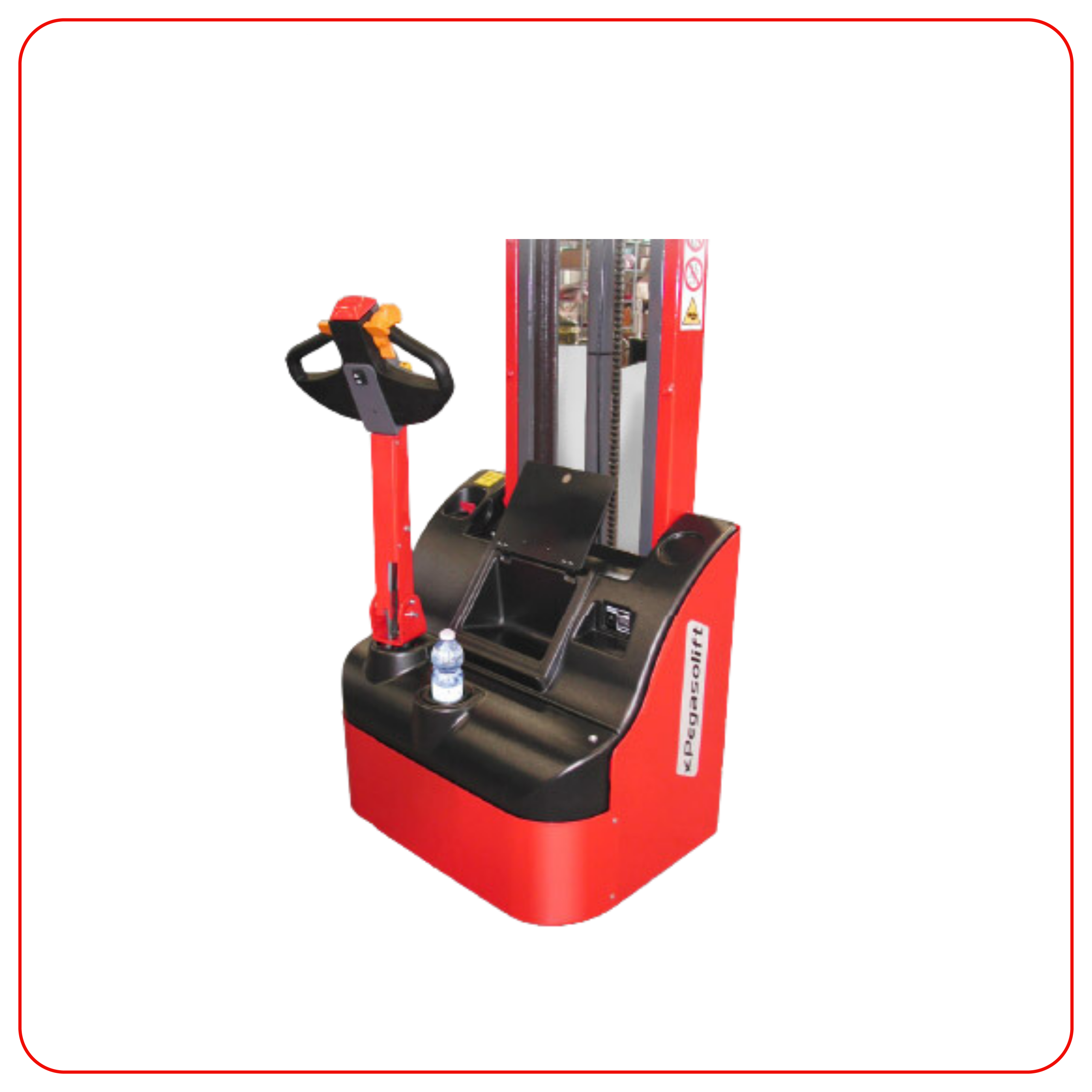

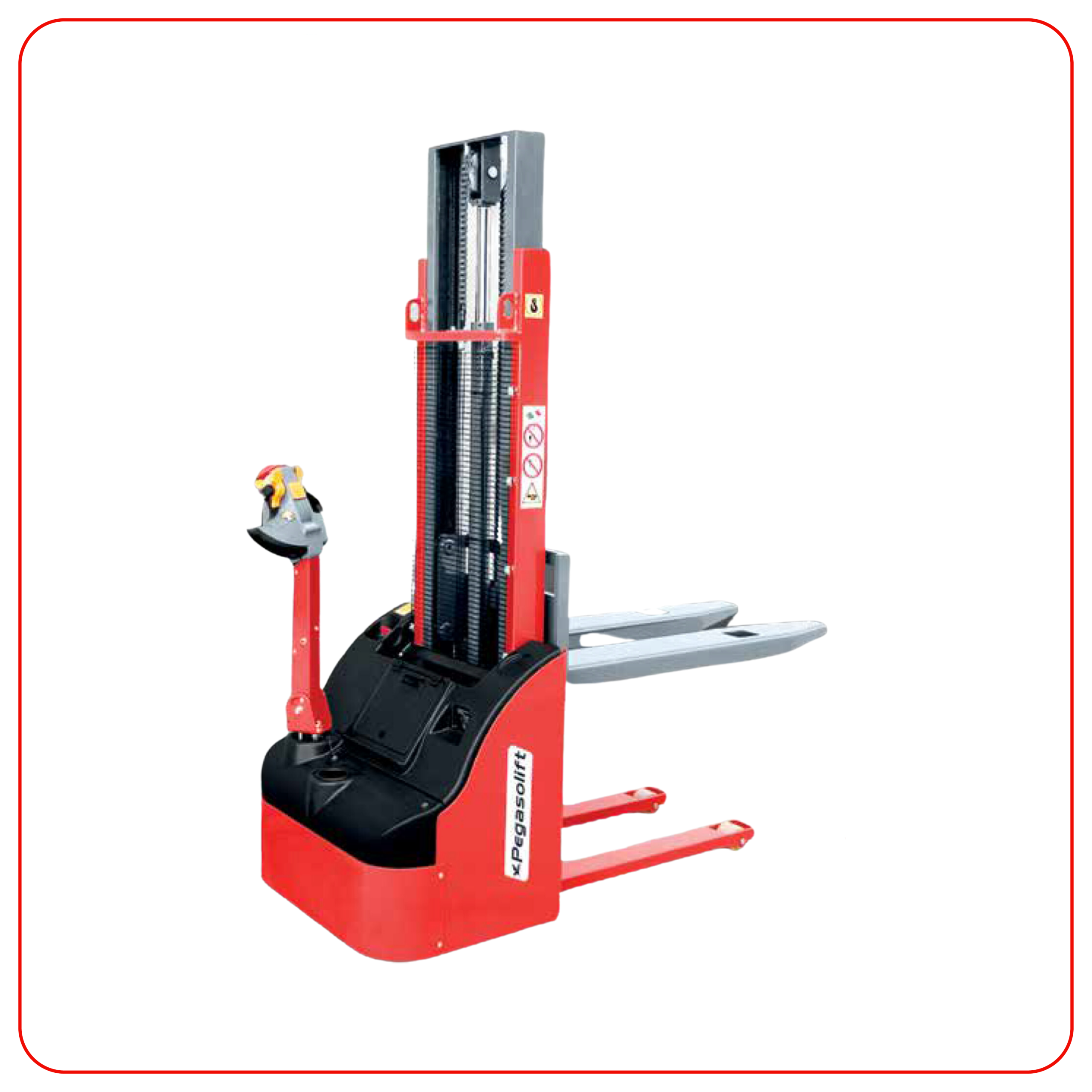

Electric Pallet Stacker W12

w12 2
w12 3
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery

This product is currently out of stock and unavailable.

SKU:7124476199044-electric-pallet-stacker-w12Category:

W12 is ideal for everyday handling of pallets for light industry and in narrow aisles thanks to narrow steering radius.  Ideal for handling loads no more than 1200 kg.

Technical specifications

  • Built in battery charger included (24V 10A).┬á
  • Including Battery (Lead/Acid Battery 2x12V 110Ah/20h)
  • Guide with lateral rudder,┬áManuel control.
  • Electronic system controller MOSFET 24V 90A.
  • Fork Dimensions 180x70x1140 mm
  • Proportional control of the forks descent speed. (Hydraulic unit up to 24V 2200W).
  • Speed selector for manoeuvres with vertical rudder.
  • Suitable for use in┬áCold Store -30┬░C (Optional).
  • LCD meter connected to the micro rudder.
  • Mast protection in stainless steel mesh.
  • Load capacity of┬á1200 kg.
  • Max. lifting height┬ábetween 2.9 and 4.2 metre (Different Mast Options)
  • Electromagnetic brake (24V 700W).
  • Polyurethane wheels, single rollers.
  • Storage┬ácompartment on dashboard.
  • For Li-Ion battery please ask for quotation
  • Ask for special versions such as Coil Transport Platform etc..
