Electric Pallet Stacker PL20

pl13_5c92975d 4bd7 485f 9fcb ed24cf91e479
OperatorsPlatform_c6a31583 5890 446f bd28 802ff4841192
PL SLGSeries 2withplatform_abe6d967 6e71 421f aca5 170830d5f311
PL SLGSeries 1_8780a671 6feb 47df 89b1 f3cd4b82521b
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery

SKU:7119681650820-pl20-electric-pallet-stackersCategory:

Guide with central rudder

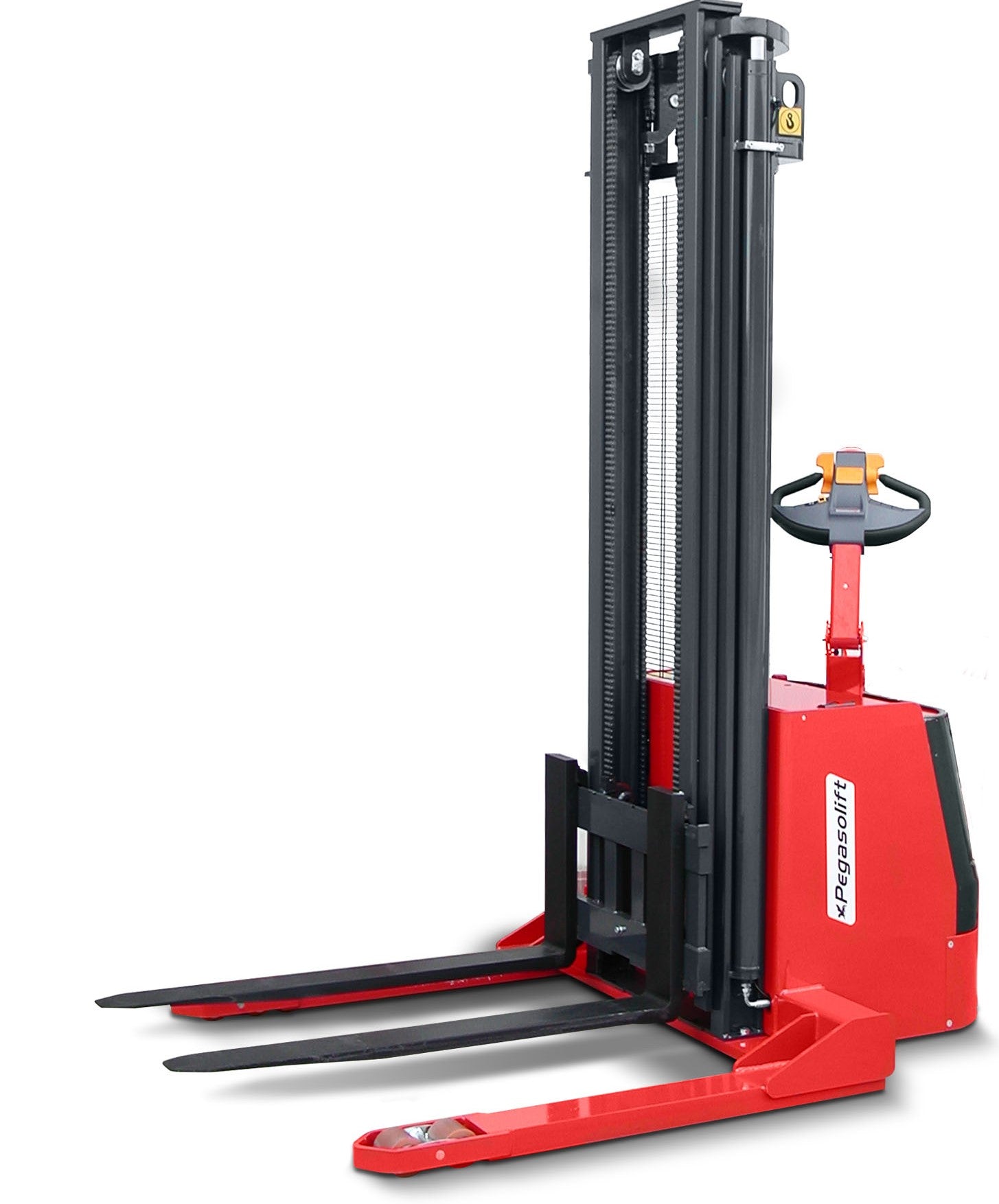

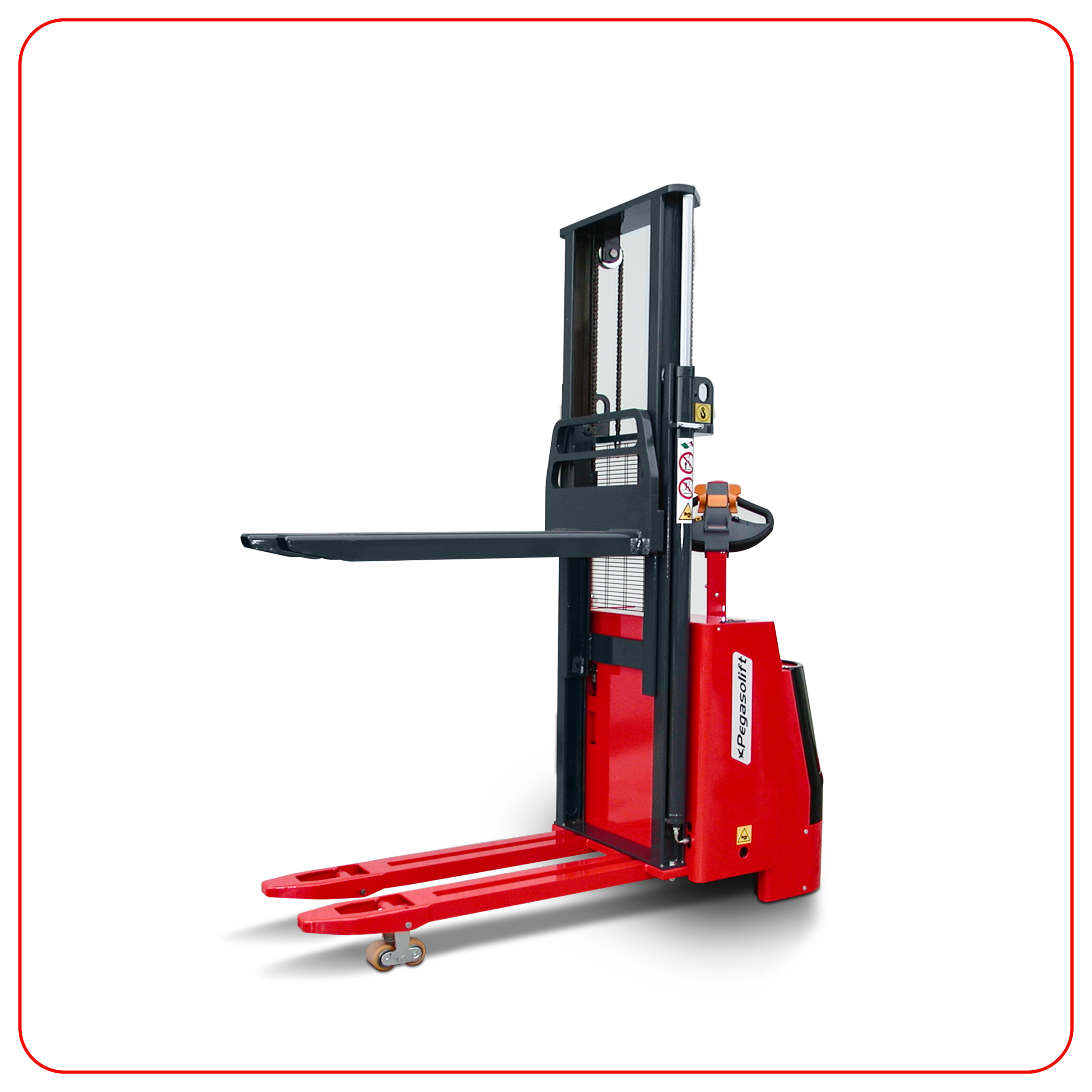

The PL20 Eletric pallet stacker has a central tiler drive and manual control.
The tiller head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder and proportional speed of descent control forks.

  • Including Battery (Lead/Acid Battery 24V 270Ah/5h)
  • Battery Charger Optional (50A Battery Charger suggested)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of┬á2000 kg.

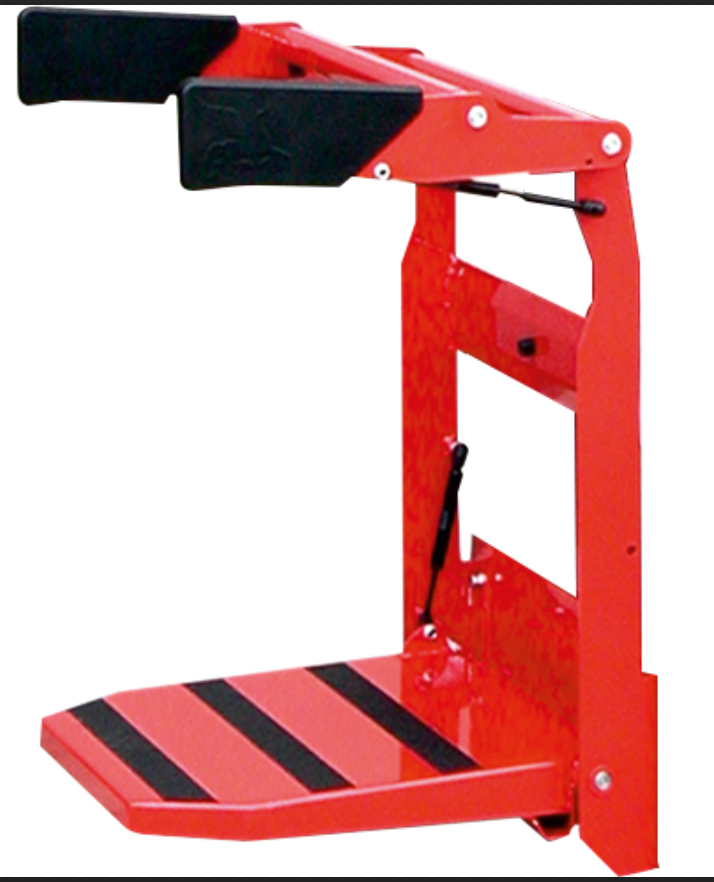

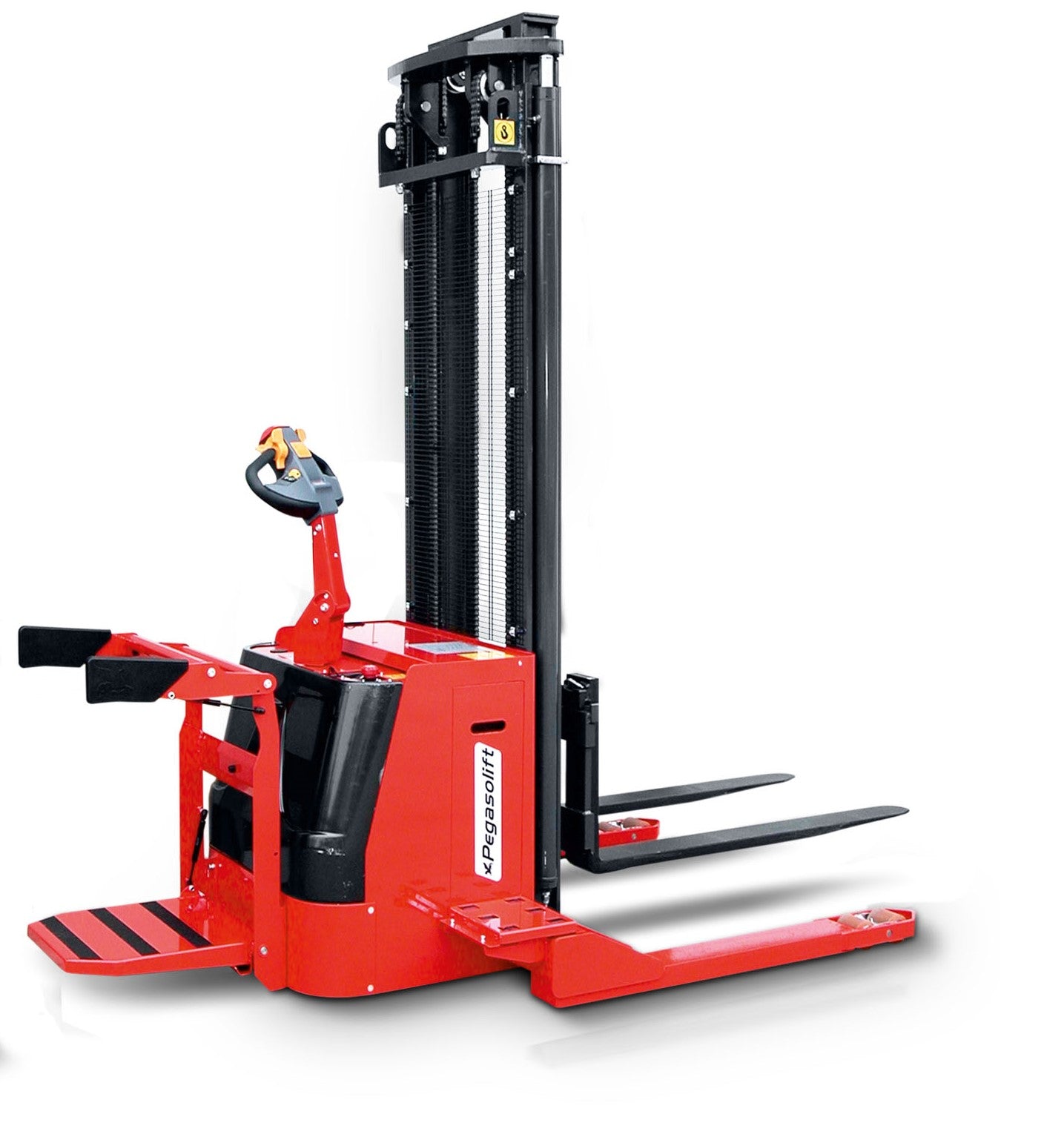

  • Operator`s Platform (Optional)
  • AC Drive.
  • Max. Lifting height between┬á2.9 and 5.5 metre. (Different mast options)
  • Polyurethane wheels.
  • Fork Dimensions 200x70x1140 mm
  • Suitable for use in┬áCold Store -30┬░C (Optional)
  • Proportional control of the forks descent speed.
  • Battery charge indicator with LCD hour counter.
  • Double front roller.
  • Electromagnetic service brake.
  • Automatic speed reduction with lifted load.
  • Electronic system MOSFET 24V 90A.
  • 24V 3000W hydraulic power unit with proportional┬áascent/descent solenoid valve.
  • Ex ATEX (Optional)
  • For Li-Ion battery option please ask for quotation
  • Ask for additional tools such as Fork Clamps, Coil transporter etc…
