Electric Pallet Stacker PL16

pl13_23a94372 ea6c 4456 8724 3a0316080374
OperatorsPlatform_ac8a7156 134b 43ba 83d3 6d4ced8c1d3d
PL SLGSeries 1_6dc91018 b85c 4d38 a1ac fbc069ac5c49
PL SLGSeries 2withplatform_7e7695e4 3415 4532 abde fe493300298b
PL SLGSeries_eb0d5245 a197 40f7 a418 1777b86b338d
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery

SKU:7119681486980-pl16-electric-pallet-stackersCategory:

Guide with central rudder

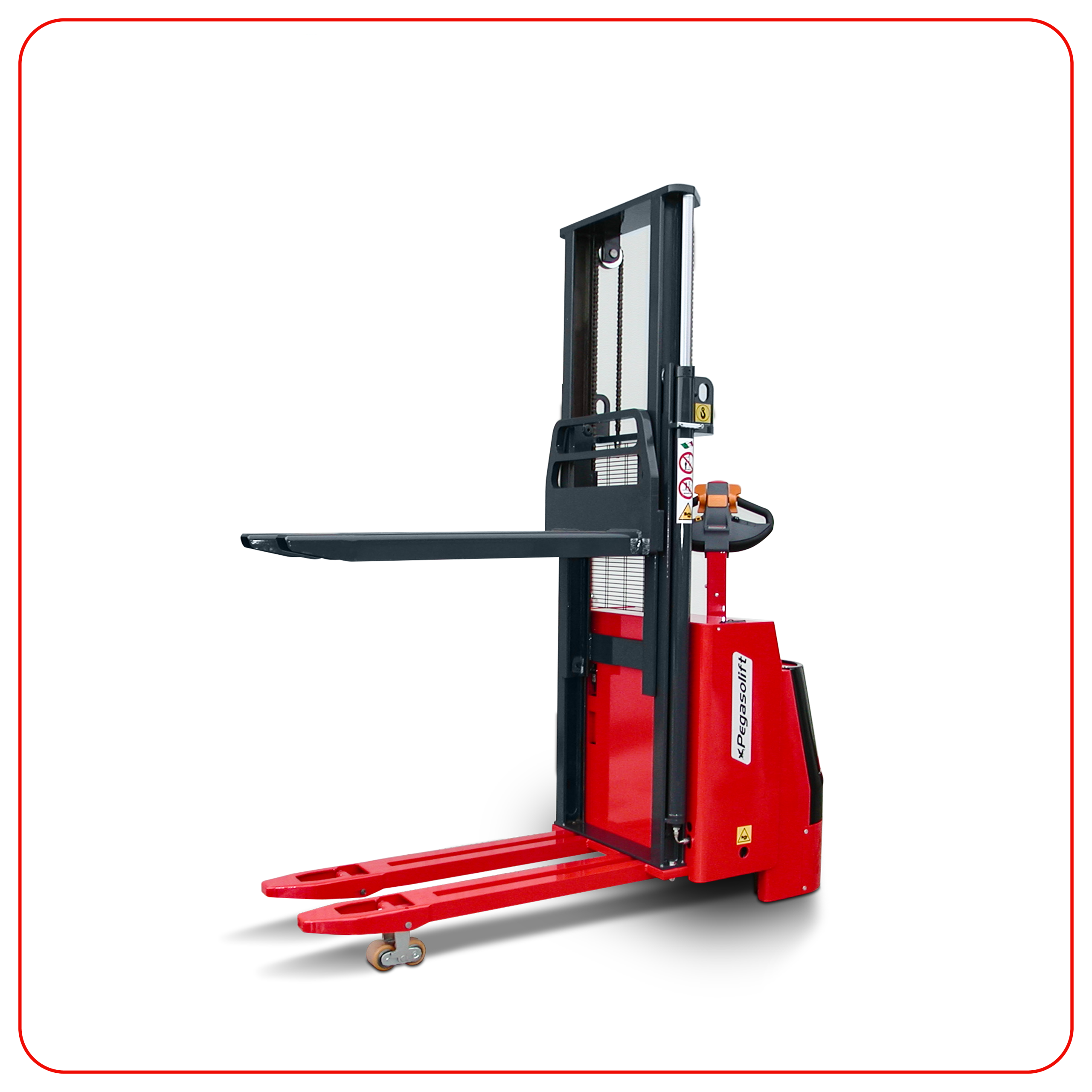

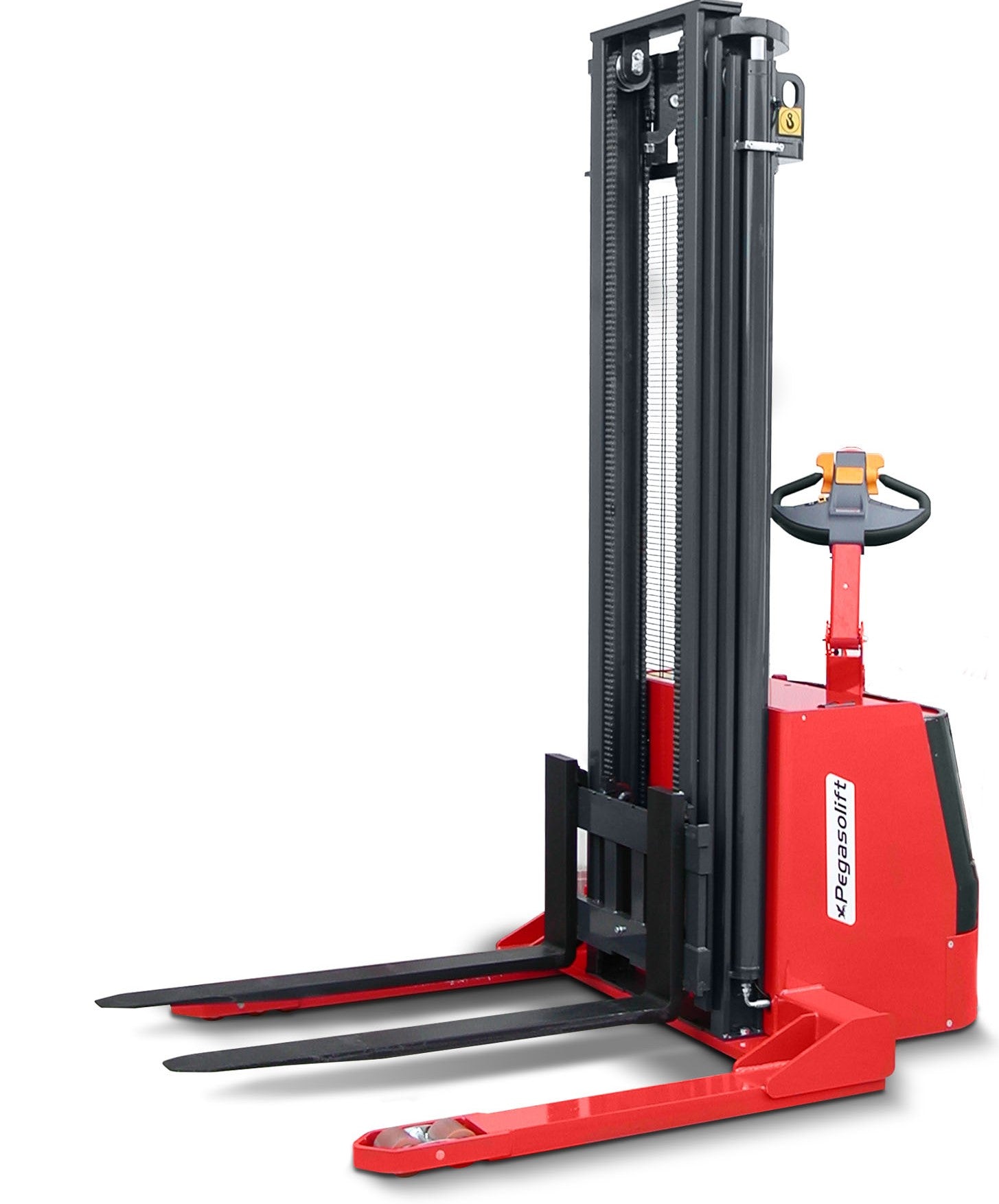

The PL16 Eletric pallet stacker has a central tiler drive and manual control.
The tiller head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder and proportional speed of descent control forks.

  • Including Battery (Lead/Acid Battery 24V 270Ah/5h)
  • Battery Charger Optional (50A Battery Charger suggested)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of┬á1600 kg.

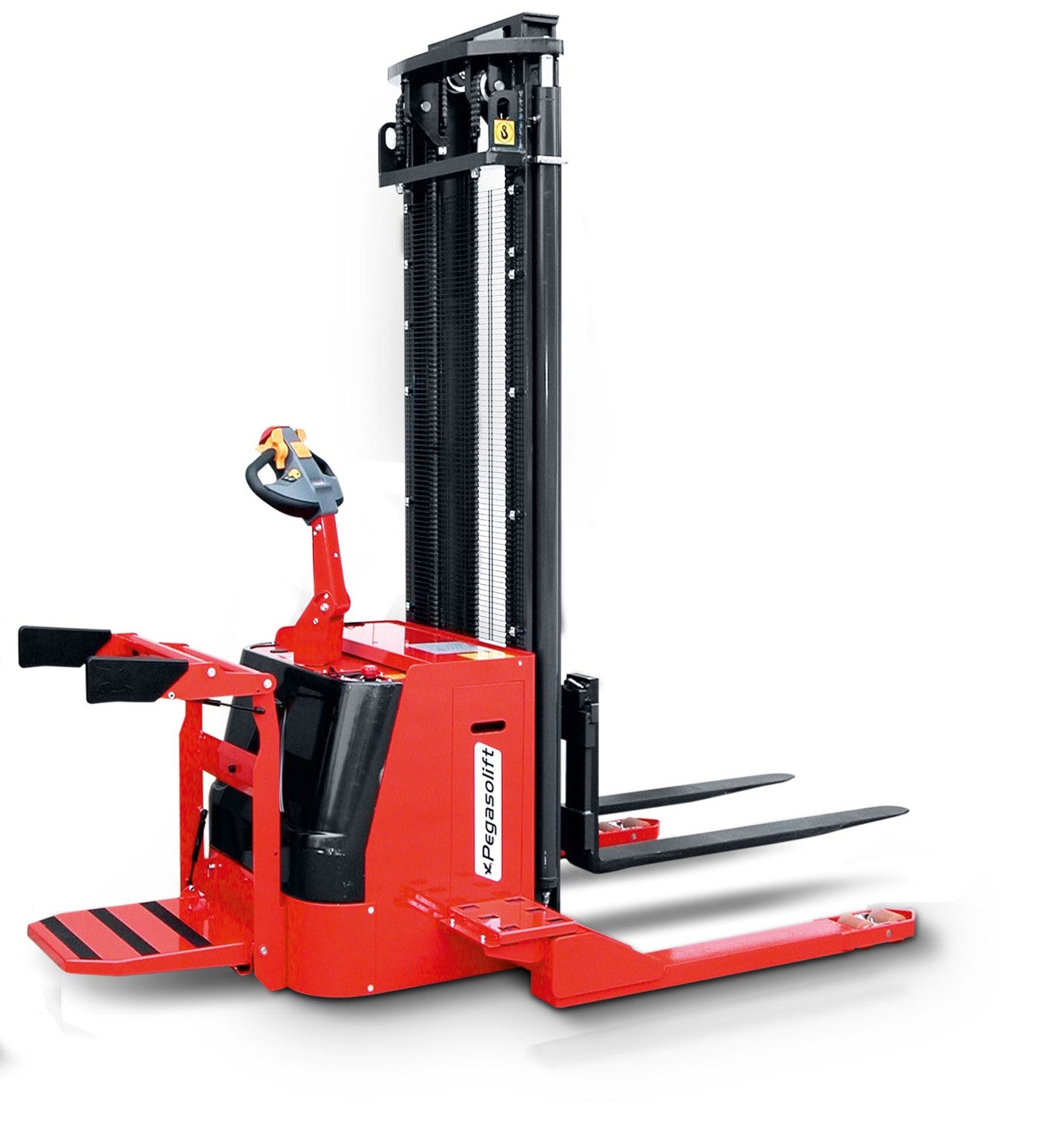

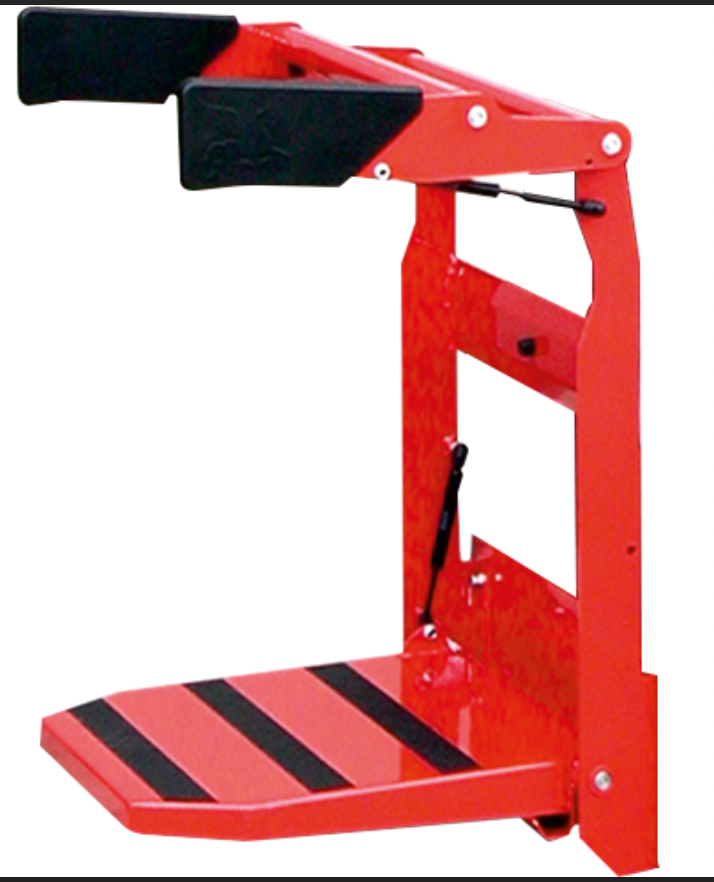

  • Operator`s Platform (Optional)
  • AC Drive.
  • Max. Lifting height between┬á2.9 and 5.5 metre. (Different mast options)
  • Polyurethane wheels.
  • Fork Dimensions 180x70x1140 mm
  • Suitable for use in┬áCold Store -30┬░C.┬á(Optional)
  • Proportional control of the forks descent speed.
  • Battery charge indicator with LCD hour counter.
  • Double front roller.
  • Electromagnetic service brake up to 24V 1200W.
  • Automatic speed reduction with lifted load.
  • Electronic system MOSFET 24V 90A.
  • 24V 3000W hydraulic power unit with proportional┬áascent/descent solenoid valve.
  • Ex ATEX optional
  • For Li-Ion battery option please ask for quotation
  • Ask for additional tools such as Fork Clamps, Coil transporter etc…
