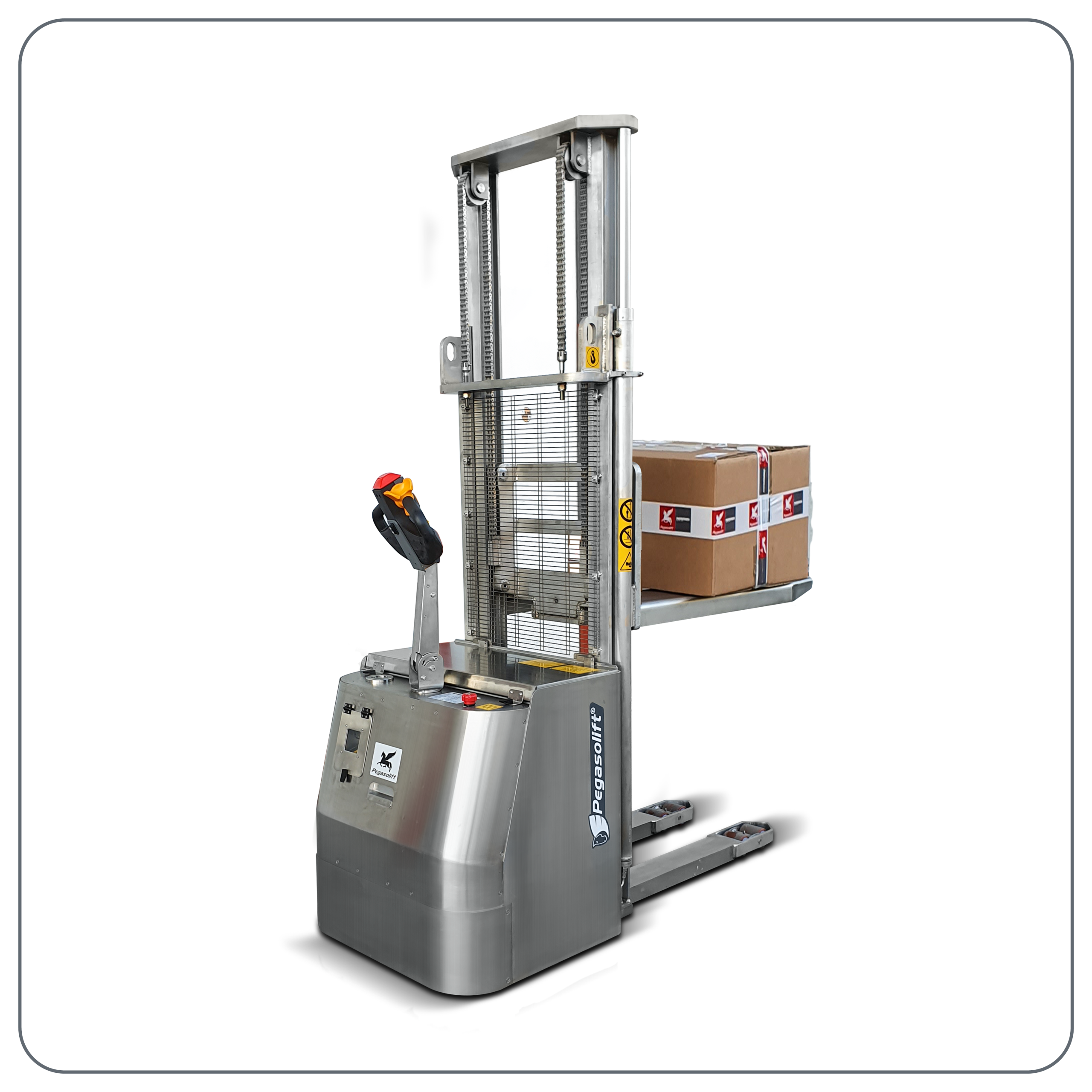

Stainless steel pallet stacker PL16 INOX
PL16 INOX is made of AISI 304 stainless steel, ideal for handling pharmaceutical, chemical and foods.

Ideal for handling medical, chemical and food.
PL16 INOX is the pallet stacker made of AISI 304 stainless steel, ideal for handling pharmaceutical, chemical and food goods. It is supplied with IP56 protection grade even for jet washing.

  • Including Battery┬á
  • Battery Charger Optional (50A Battery Charger suggested)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of┬á1600 kg.

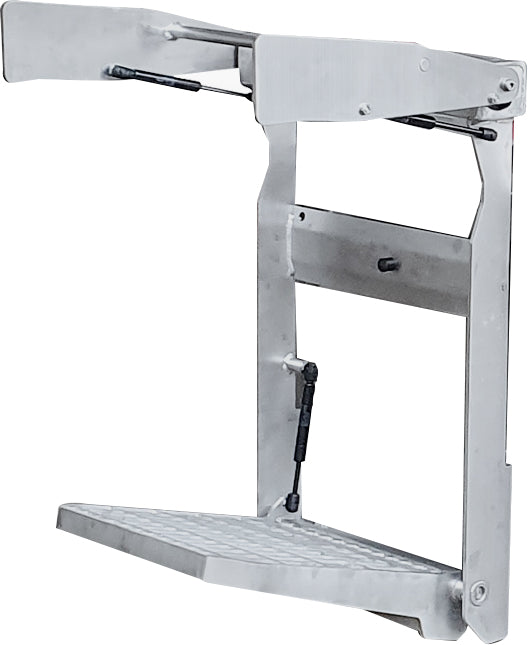

  • Operator`s Platform (Optional)
  • AC Drive.
  • Max. Lifting height between┬á2.9 and 5.5 metre. (Different mast options)
  • Polyurethane wheels.
  • Fork Dimensions 180x70x1140 mm
  • Suitable for use in┬áCold Store -30┬░C┬á(Optional)
  • Guide with central rudder,┬áManual control.
  • AC Electronic System 24V 250A.
  • Proportional control of the forks descent speed.
  • Oil-hydraulic circuit for the food industry in class H1.
  • LCD meter connected to the micro rudder
  • Mast protection in stainless steel mesh.
  • Components compartment bonnet (electronic system, hydraulic control unit, rectifier, batteries) in stainless steel AISI304 with IP56 protection.
  • Control head with IP56 protection.
  • 24V 3000W hydraulic power unit with proportional ascent/descent solenoid valve.
  • AC translation motor with excitation in series 24V 1200W complete with electromagnetic brake.
  • Double┬áfront rollers.
  • Battery charge indicator.
  • Quick battery change (Optional)
  • Ex ATEX is optional
