Electric Pallet Stacker PL13

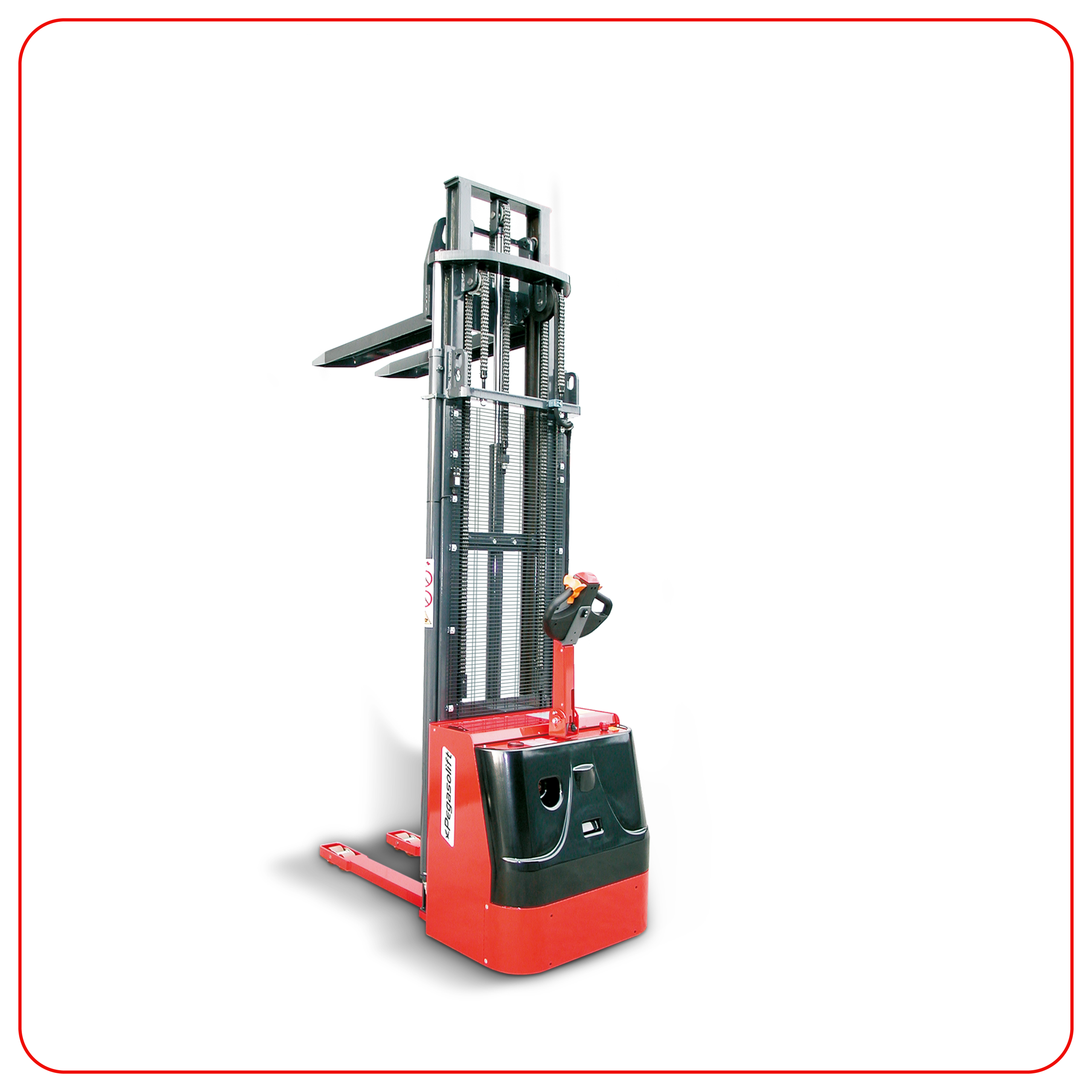

pl3 1

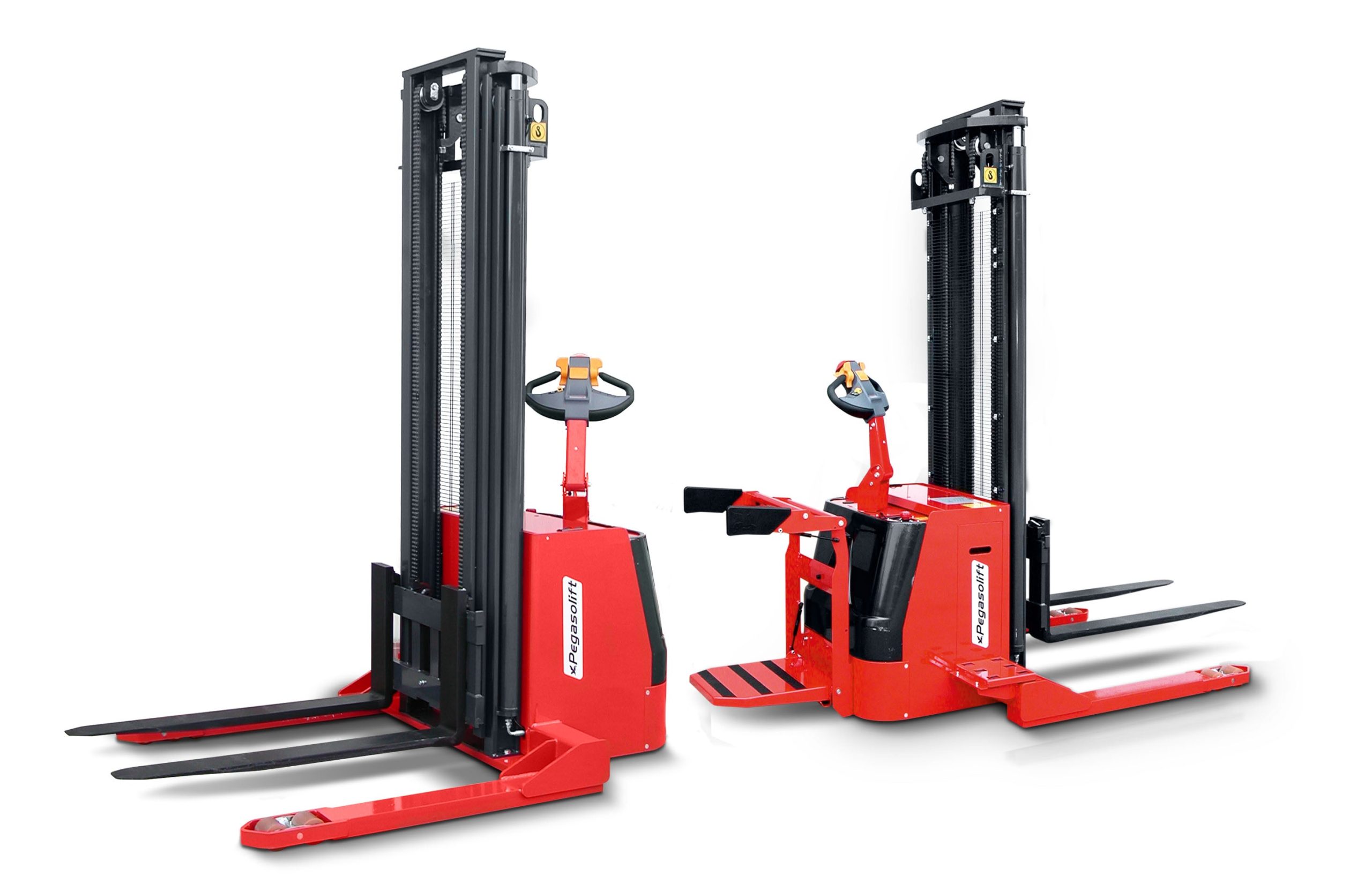

PL SLGSeries

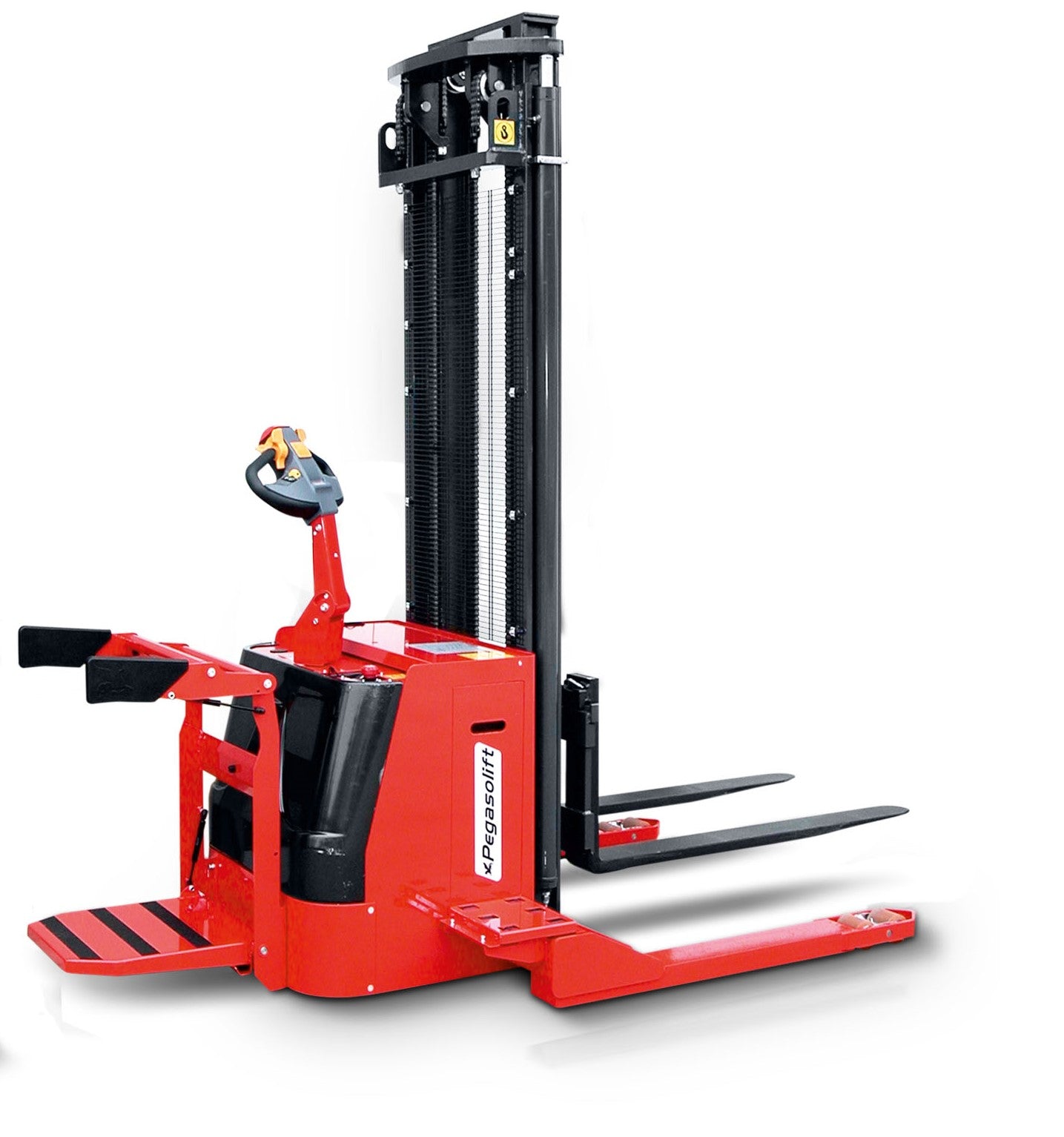

PL SLGSeries 2withplatform

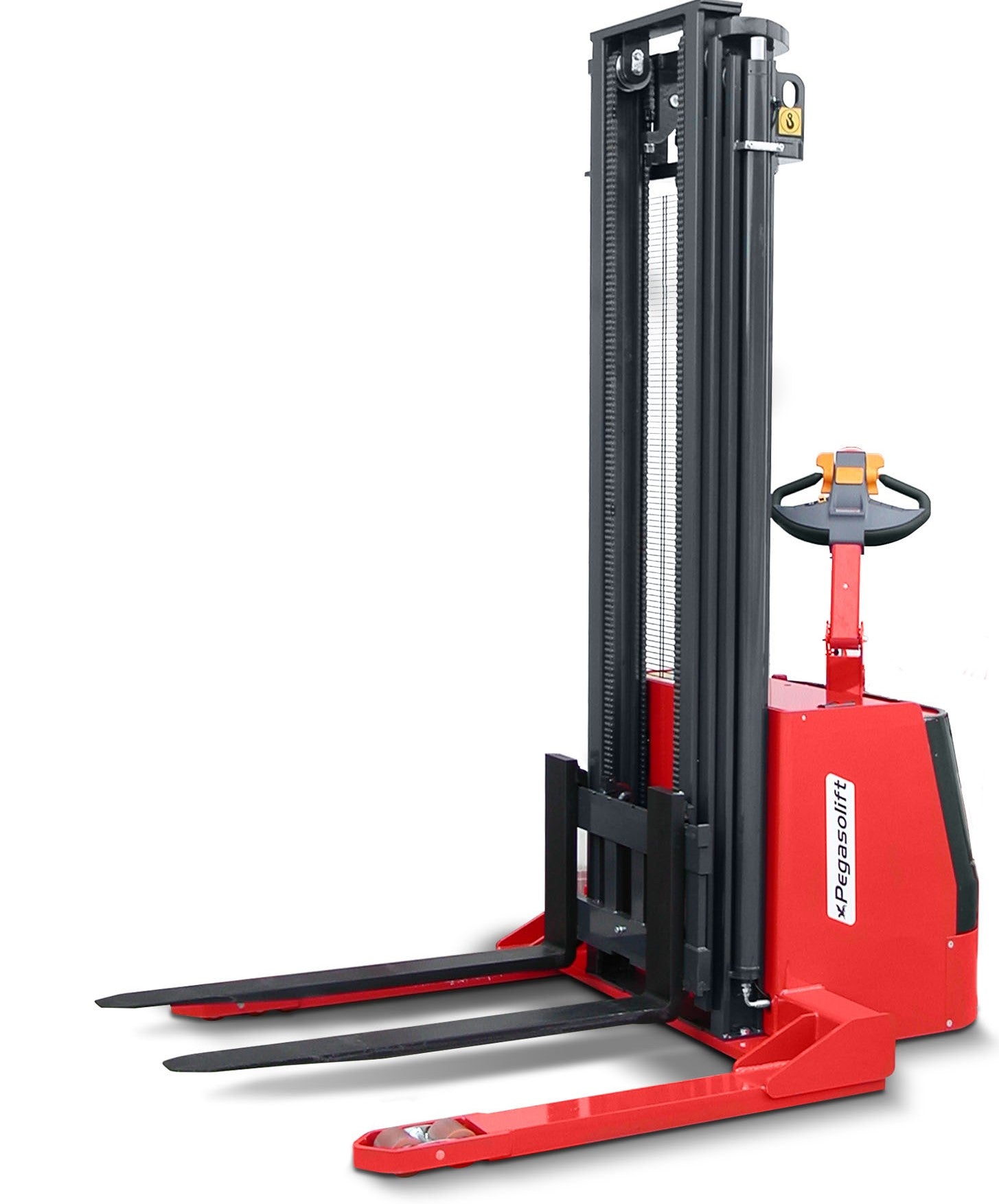

PL SLGSeries 1
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery


Guide with central rudder
The PL13 Eletric pallet stacker has a central tiler drive and manual control.
The tiller head with ergonomic shape is equipped with a speed selector for manoeuvres with vertical rudder and proportional speed of descent control forks.

  • Including Battery (Lead/Acid Battery 24V 270Ah/5h)
  • Battery Charger Optional (50A Battery Charger suggested)
  • Speed selector for manoeuvres with vertical rudder.
  • Loading capacity of 1300 kg.

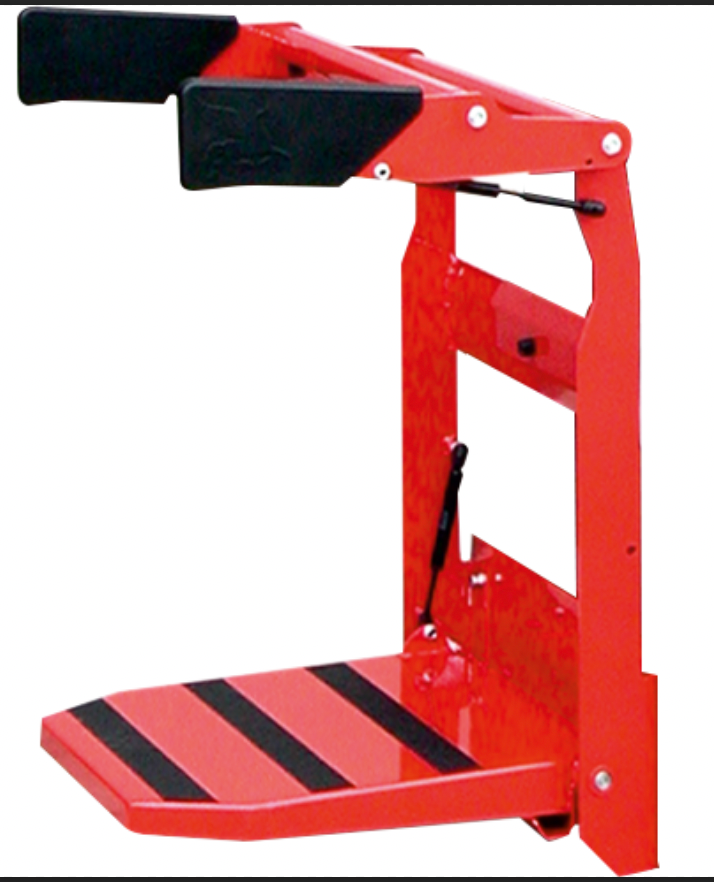

  • Operator`s Platform (Optional)
  • AC Drive.
  • Max. Lifting height between 2.9 and 5.5 metre. (Different mast options)
  • Polyurethane wheels.
  • Fork Dimensions 180x70x1140 mm
  • Suitable for use in┬áCold Store -30┬░C. (Optional)
  • Proportional control of the forks descent speed.
  • Battery charge indicator with LCD hour counter.
  • Double front roller.
  • Electromagnetic service brake up to 24V 1200W.
  • Automatic speed reduction with lifted load.
  • Electronic system MOSFET 24V 90A.
  • 24V 3000W hydraulic power unit with proportional┬áascent/descent solenoid valve.
  • Ex ATEX optional
  • For Li-Ion battery option please ask for quotation
  • Ask for additional tools such as Fork Clamps, Coil transporter etc…
