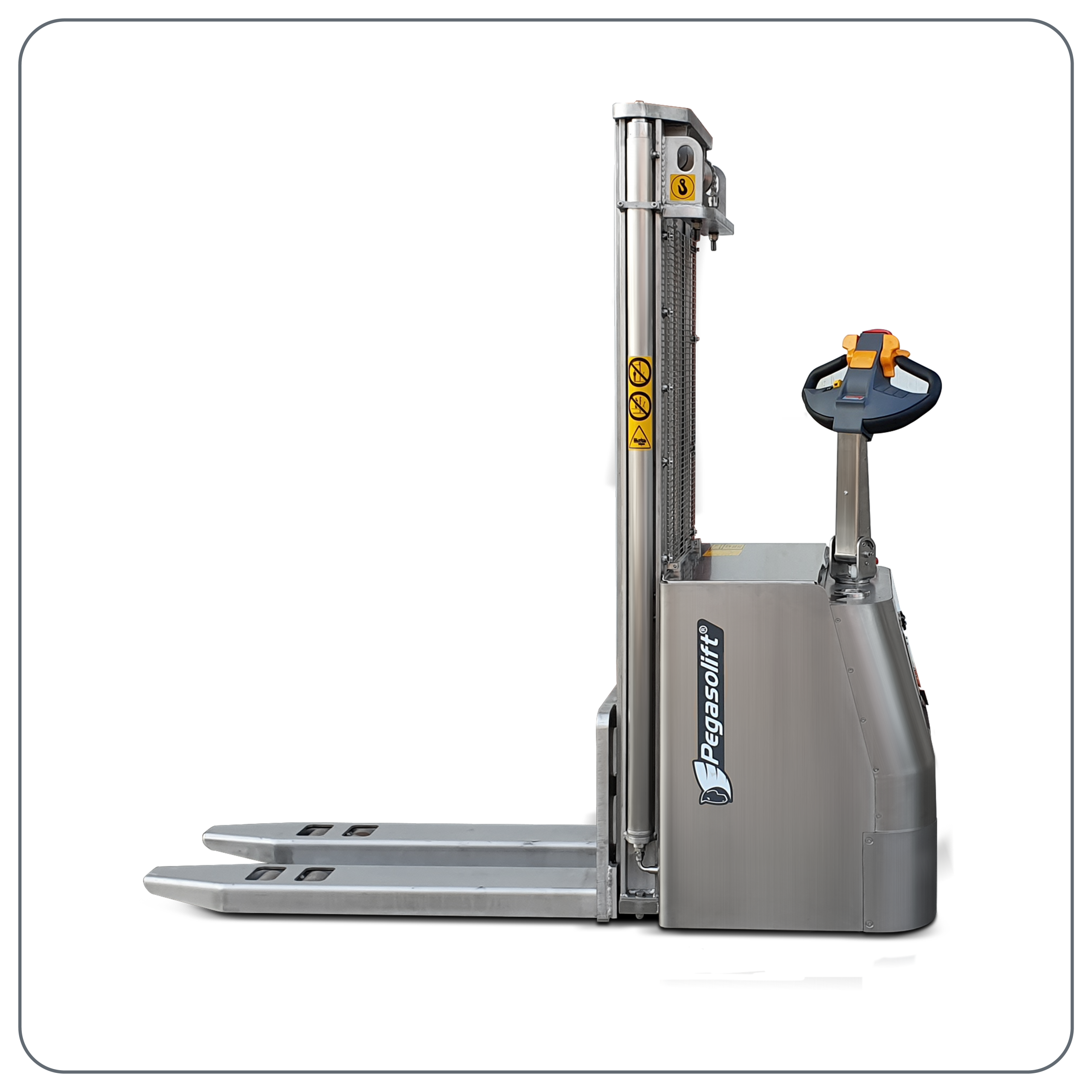

Electric Pallet Stacker PL13 INOX

Stainless steel pallet stacker PL13 INOX
PL13 INOX is made of AISI 304 stainless steel, ideal for handling pharmaceutical, chemical and foods.

Ideal for handling medical, chemical and food.
PL13 INOX is the pallet stacker made of AISI 304 stainless steel, ideal for handling pharmaceutical, chemical and food goods. It is supplied with IP56 protection grade even for jet washing.

• Including Battery (Gel Battery 24V 255Ah/5h)
• Including Battery Charger Unit (24V 50A)

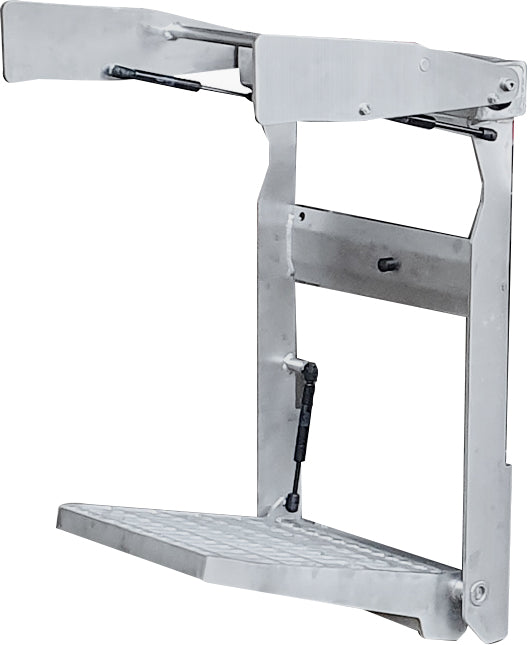

• Operator`s Platform (Optional)
• Max. Lifting height between 2.9 and 4.5 metre. (Different mast options)
• Suitable for use in Cold Store -30°C. (Optional)
• Guide with central rudder, Manual control.
• AC Electronic System 24V 250A.
• Proportional control of the forks descent speed.
• Loading capacity of max 1300 kg.
• Speed selector for manoeuvres with vertical rudder.
• Oil-hydraulic circuit for the food industry in class H1.
• LCD meter connected to the micro rudder
• Mast protection in stainless steel mesh.
• Components compartment bonnet (electronic system, hydraulic control unit, rectifier, batteries) in stainless steel AISI304 with IP56 protection.
• Control head with IP56 protection.
• 24V 3000W hydraulic power unit with proportional ascent/descent solenoid valve.
• AC translation motor with excitation in series 24V 1200W complete with electromagnetic brake.
• Polyurethane wheels
• Fork Dimensions 180x70x1140 mm
• Double front rollers.
• Battery charge indicator.
• Ex ATEX is optional
• Please ask for options of Simplex mast options.
