Electric Order Picker OP20

op20 1
op20 2
Rated 0 out of 5
(0 customer review)

­čôŽ Including Delivery

This product is currently out of stock and unavailable.


OP20 is the order picker that comes from the growing need to pick up goods directly from the shelf by the operator on board with 3 different option of weight and height limit. (Model OP20/40), (Model OP20/50) and (Model OP20/60)

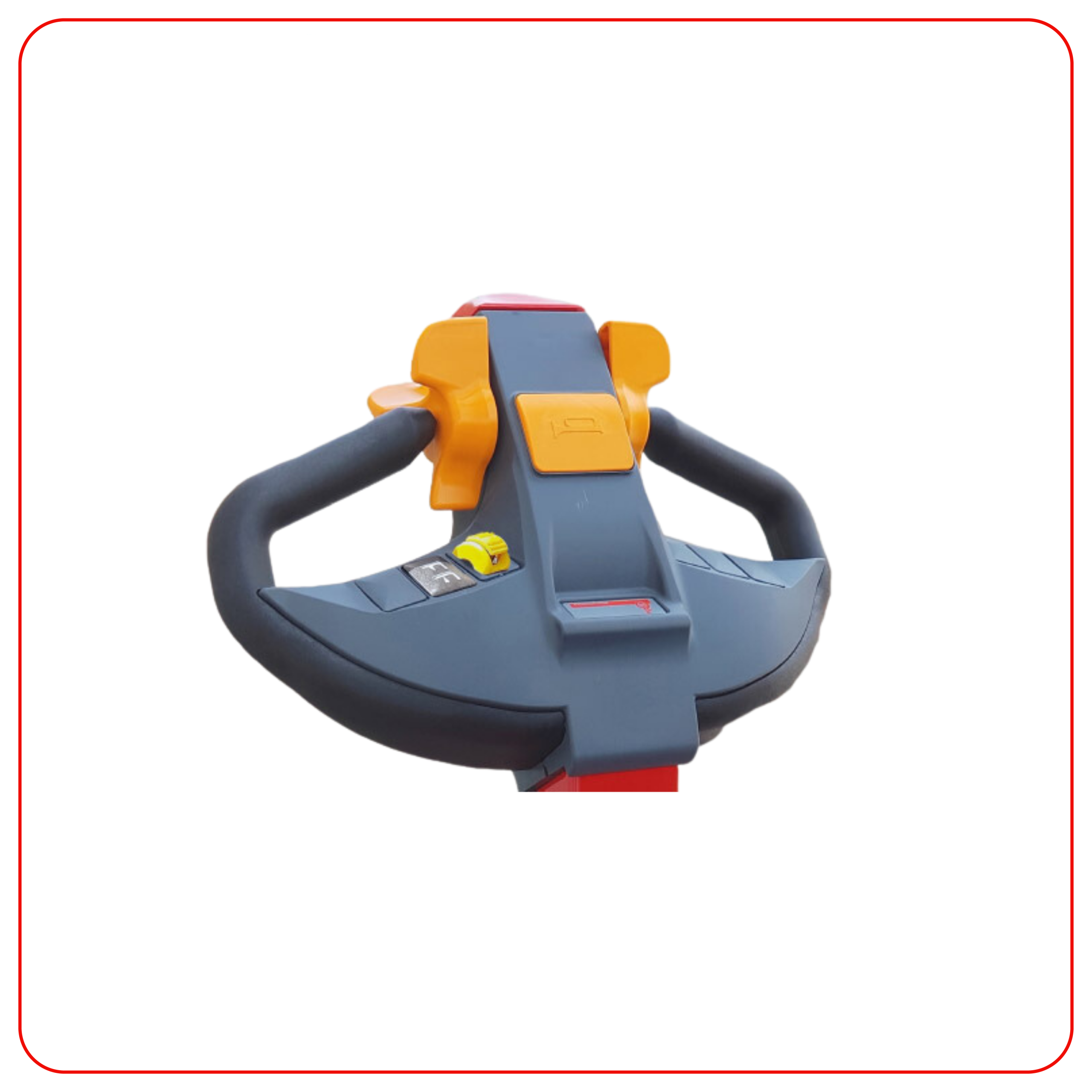

Guide with central rudder
The order picker OP20 has a drive with central tiller and pedestrian controlled
The tiller head with ergonomic shape has a speed selector for maneuvers.

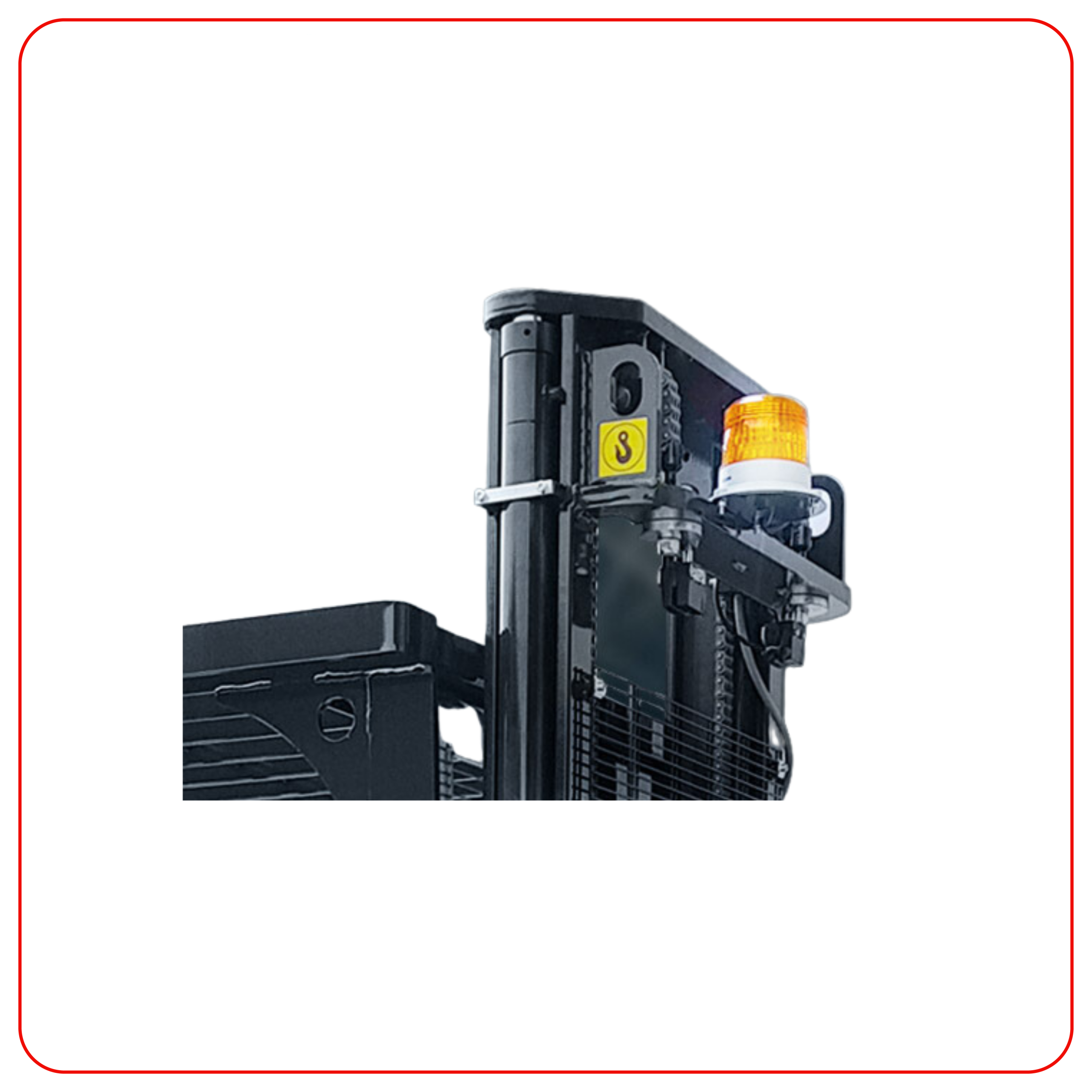

Flash lamp and beeper
The order picker OP20 is equipped with flash lamp and a beeper.

Technical specifications

  • Including Battery (Lead/Acid Battery 24V 315Ah/5h)
  • Battery Charger Optional (50A Battery Charger suggested)
  • Operator have the control of the lifting and descending only inside the platform.
  • Loading and Height capacity:
  • 300 kg up to 6 metre platform lifting height (Model OP20/60)
  • 400 kg up to 5 metre┬áplatform lifting height (Model OP20/50)
  • 500 kg up to 4 metre┬áplatform lifting height┬á(Model OP20/40)
  • Duplex Mast┬á(Model OP20/40)┬áand Triplex Mast┬á(Model OP20/50) and┬á(Model OP20/60)
  • AC Drive
  • Suitable for use in┬áCold Store -30┬░C. (Optional)
  • Additional Front Shelf (Optional)
  • Flash light
  • Beeper
  • Heavy duty solution for pick up goods from shelves in public shops
  • Disabled traction with operator in the cabin
  • Central tiller, pedestrian controlled.
  • Electronic controller 24V 250A
  • Lateral doors with parallelogram opening system.
  • Front of the operator cabin closed.
  • Protection roof for the operator.
  • Safety Kit
  • For Li-Ion battery option, please ask for Quotation
  • Internal control panel with: lift/descending buttons + emergency button + selector platform/truck.
